TOYOTA VEROSSA GX110-BEPSK / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

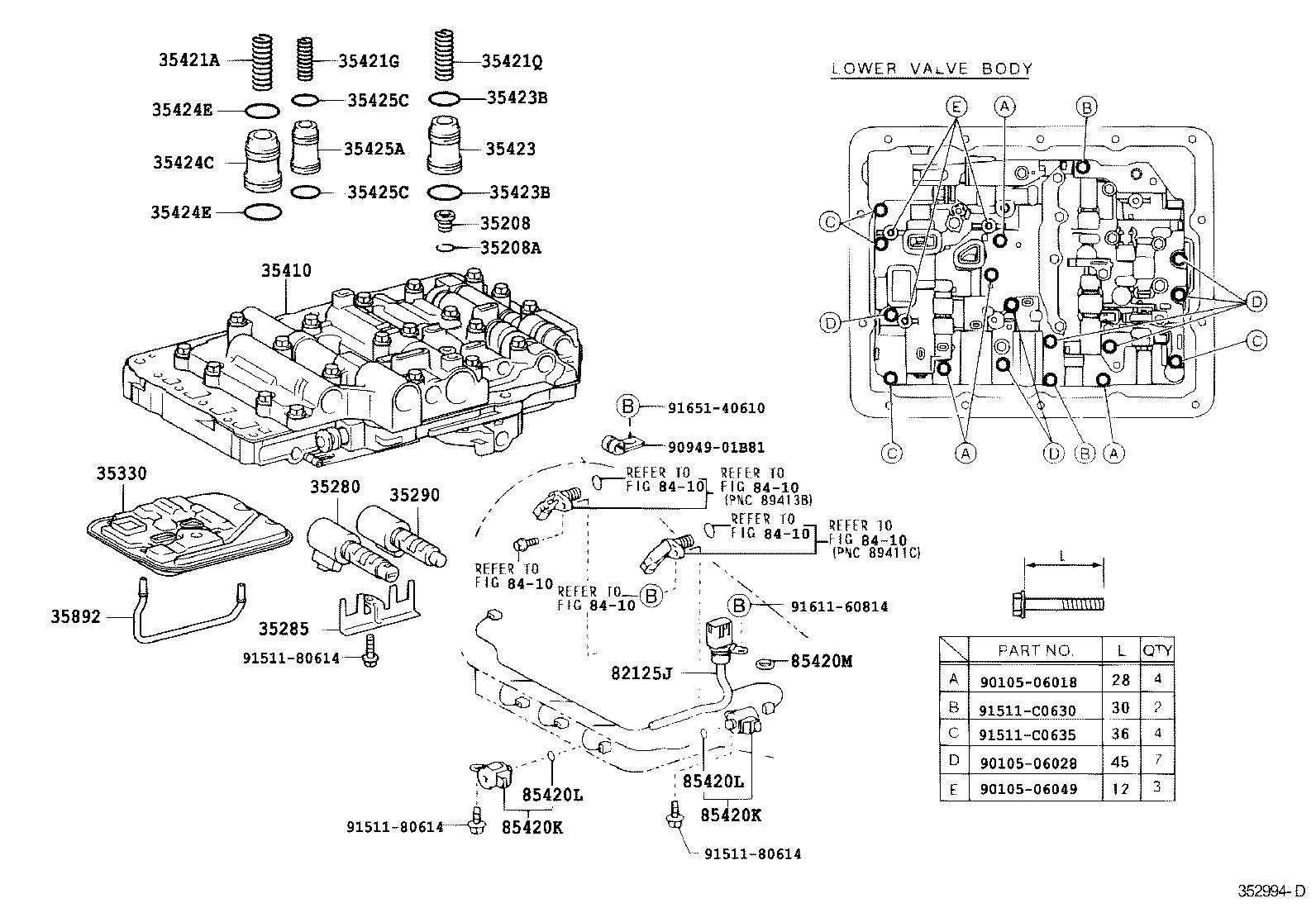

VALVE BODY OIL STRAINER ATM

A42DE (0106- )GX110

VEROSSA | VALVE BODY OIL STRAINER ATM 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) 35280 - SOLENOID ASSY, LOCK UP CONTROL 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35330 - STRAINER ASSY, VALVE BODY OIL 35410 - BODY ASSY, TRANSMISSION VALVE 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) 35423 - PISTON, B-2 ACCUMULATOR 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35424C - PISTON, C-1 ACCUMULATOR 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35892 - TUBE, OVERDRIVE BRAKE 82125J - WIRE, TRANSMISSION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85420K - SOLENOID ASSY, TRANSMISSION 85420K - SOLENOID ASSY, TRANSMISSION 85420L - RING, O(FOR TRANSMISSION SOLENOID) 85420L - RING, O(FOR TRANSMISSION SOLENOID) 85420M - RING, O(FOR SPEED SENSOR) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
