TOYOTA ALPHARD HV ATH10W-PFXGB / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

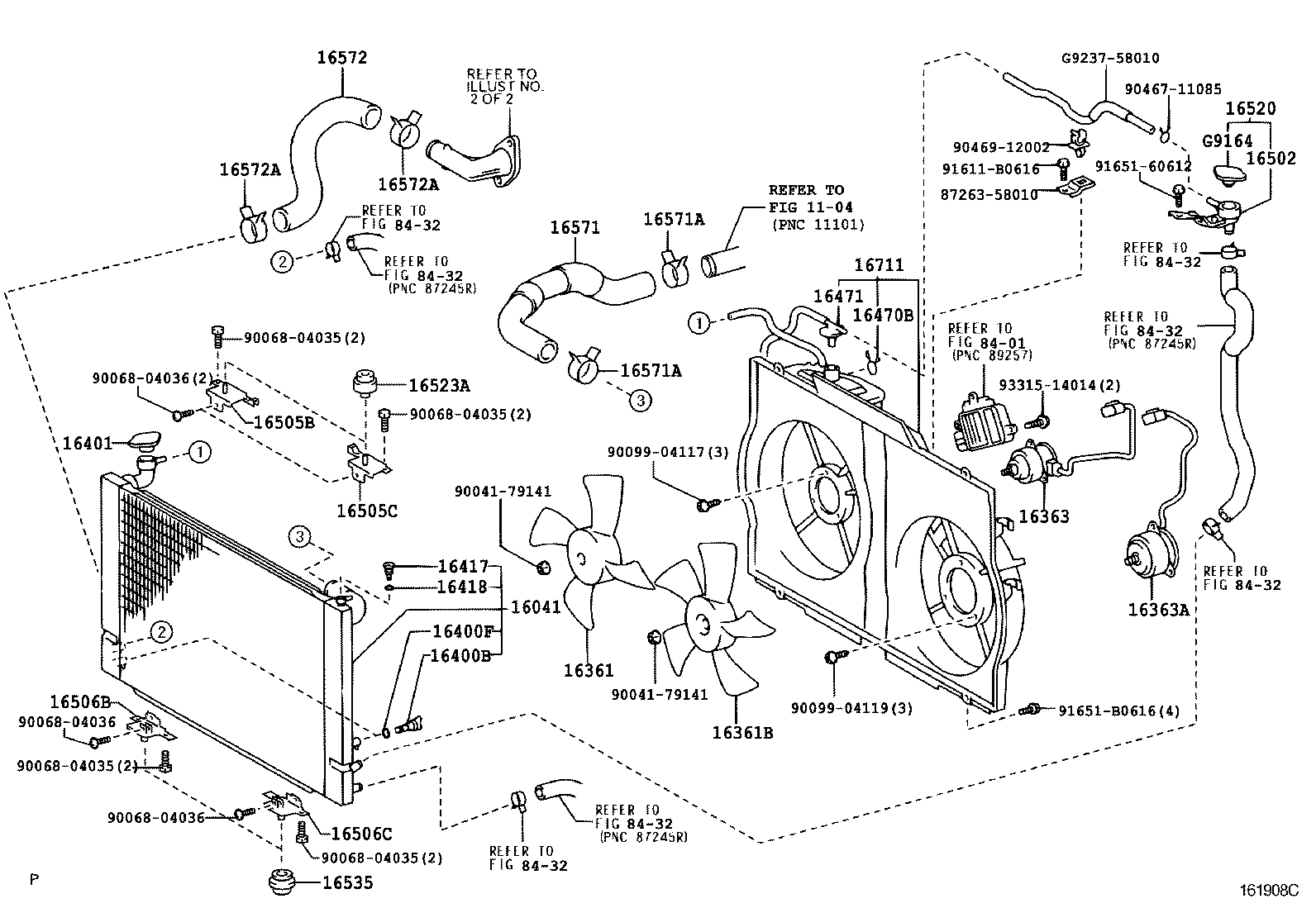

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 3(0307-0504)

ALPHARD HV | RADIATOR WATER OUTLET ** Refer Fig 16041 - RADIATOR ASSY, NO.2 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16417 - COCK 16418 - PACKING 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16502 - FILLER SUB-ASSY, WATER 16505B - SUPPORT SUB-ASSY, RADIATOR, UPPER RH 16505C - SUPPORT SUB-ASSY, RADIATOR, UPPER LH 16506B - SUPPORT SUB-ASSY, RADIATOR, LOWER RH 16506C - SUPPORT SUB-ASSY, RADIATOR, LOWER LH 16520 - FILLER ASSY, WATER 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16711 - SHROUD, FAN ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9164 - CAP, INVERTER RADIATOR ** Std Part
