TOYOTA ALPHARD HV ATH10W-PRXGB / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

(0307-0504)

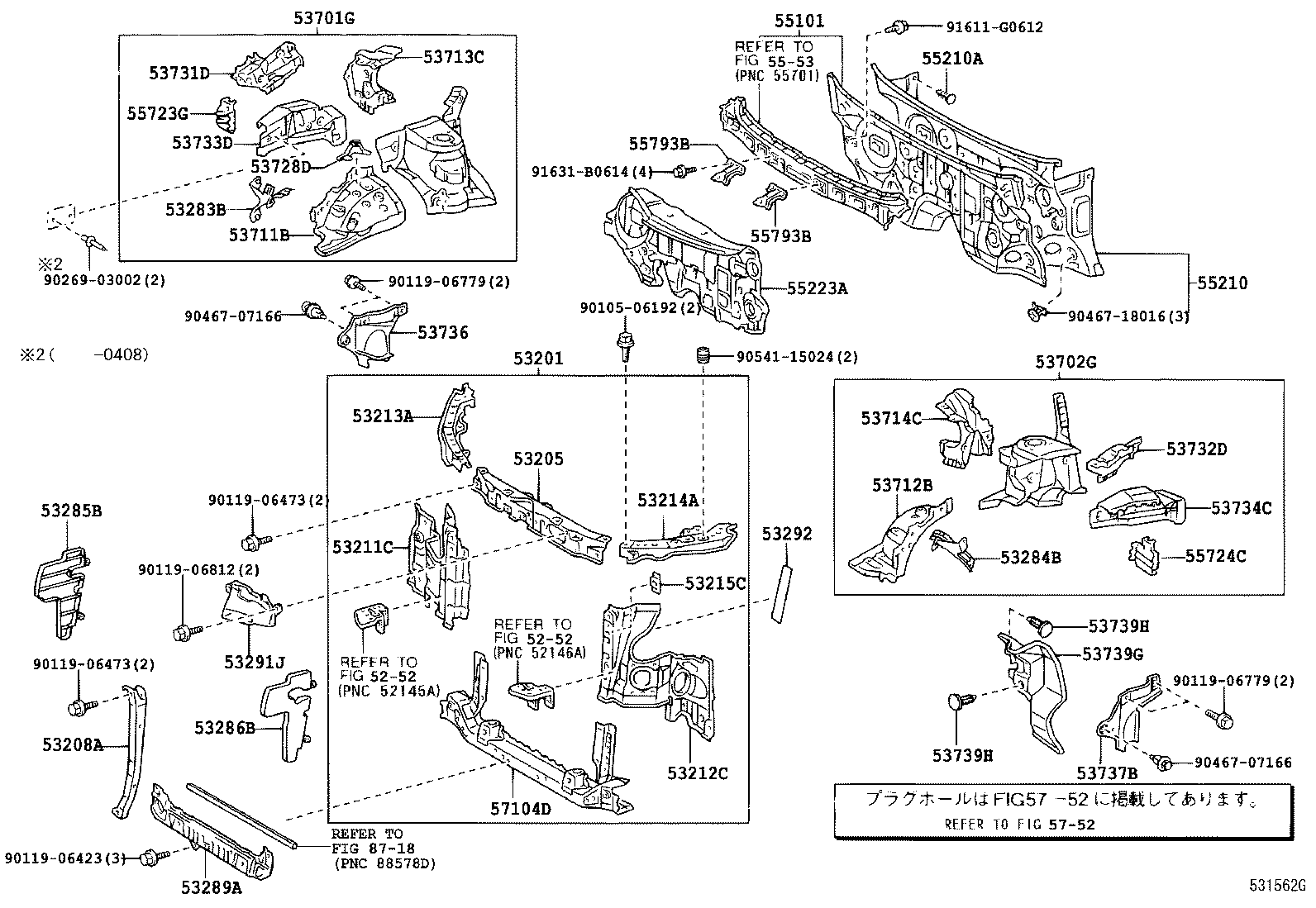

ALPHARD HV | FRONT FENDER APRON DASH PANEL ** Refer Fig ** Refer Fig 53201 - SUPPORT SUB-ASSY, RADIATOR 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53211C - SUPPORT, RADIATOR, RH 53212C - SUPPORT, RADIATOR, LH 53213A - SUPPORT, RADIATOR, UPPER RH 53214A - SUPPORT, RADIATOR, UPPER LH 53215C - BRACKET, BATTERY SUPPORT, NO.1 53283B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH 53284B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53286B - SEAL, RADIATOR SIDE AIR, NO.2 53289A - COVER, RADIATOR SUPPORT OPENING 53291J - SEAL, RADIATOR SUPPORT 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH 53701G - APRON SUB-ASSY, FRONT FENDER, RH 53702G - APRON SUB-ASSY, FRONT FENDER, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53728D - BRACKET, FENDER APRON, RH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53736 - SEAL, FRONT FENDER APRON, RH 53737B - SEAL, FRONT FENDER APRON, LH 53739G - SEAL, FRONT FENDER APRON, REAR LH 53739H - CLIP(FOR FRONT FENDER APRON SEAL) 53739H - CLIP(FOR FRONT FENDER APRON SEAL) 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55223A - INSULATOR, DASH PANEL, OUTER ** Refer Fig 55723G - GUSSET, FRONT PANEL, RH 55724C - GUSSET, FRONT PANEL, LH 55793B - COVER, WIPER MOTOR SERVICE HOLE 55793B - COVER, WIPER MOTOR SERVICE HOLE 57104D - MEMBER SUB-ASSY, FRONT CROSS ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
