TOYOTA ALTEZZA ALTEZZA GITA JCE15W-AWPVF / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE MASTER CYLINDER

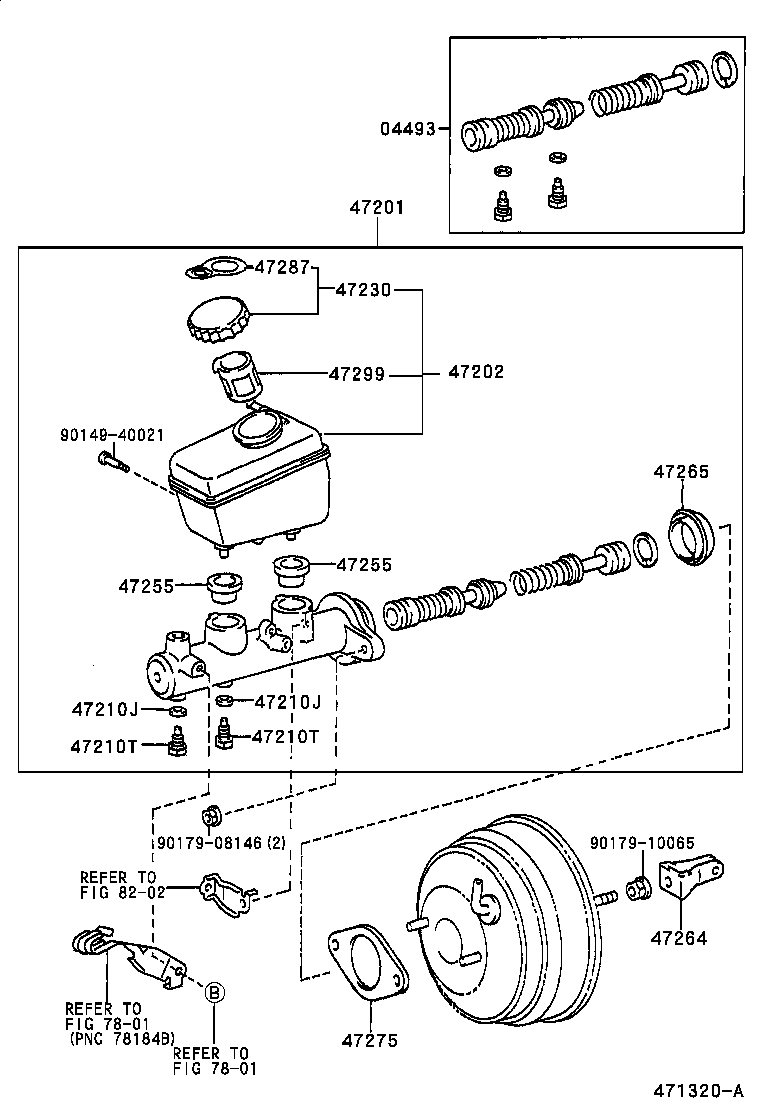

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ) ILLUST NO. 1 OF 2(9810- )GXE10,JCE1#

ALTEZZA ALTEZZA GITA | BRAKE MASTER CYLINDER 04493 - CYLINDER KIT, BRAKE MASTER 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47210J - GASKET(FOR MASTER CYLINDER) 47210J - GASKET(FOR MASTER CYLINDER) 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47265 - BOOT, MASTER CYLINDER 47275 - GASKET, BRAKE MASTER CYLINDER 47287 - LABEL, BRAKE FLUID INFORMATION 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
