TOYOTA GAIA ACM15G-BPSEH / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE SHAFT HUB

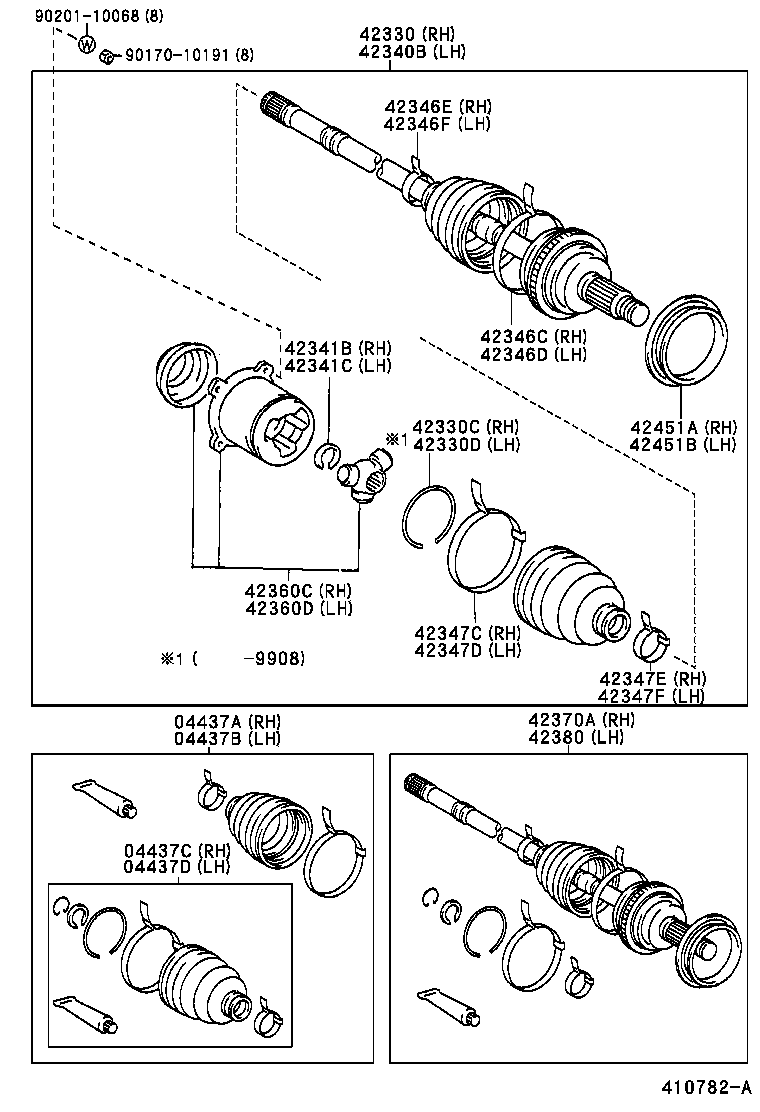

ILLUST NO. 1 OF 2(9805-0208)SXM15 ; (0208- )ACM15

GAIA | REAR AXLE SHAFT HUB 04437A - BOOT KIT, REAR DRIVE SHAFT, RH 04437B - BOOT KIT, REAR DRIVE SHAFT, LH 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH 42330 - SHAFT ASSY, REAR DRIVE, RH 42330C - RING, HOLE SNAP(FOR REAR DRIVE SHAFT) 42330D - RING, SHAFT SNAP(FOR REAR DRIVE SHAFT) 42340B - SHAFT ASSY, REAR DRIVE, LH 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH ** Std Part ** Std Part
