TOYOTA COASTER HDB51-ZCPZZ / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

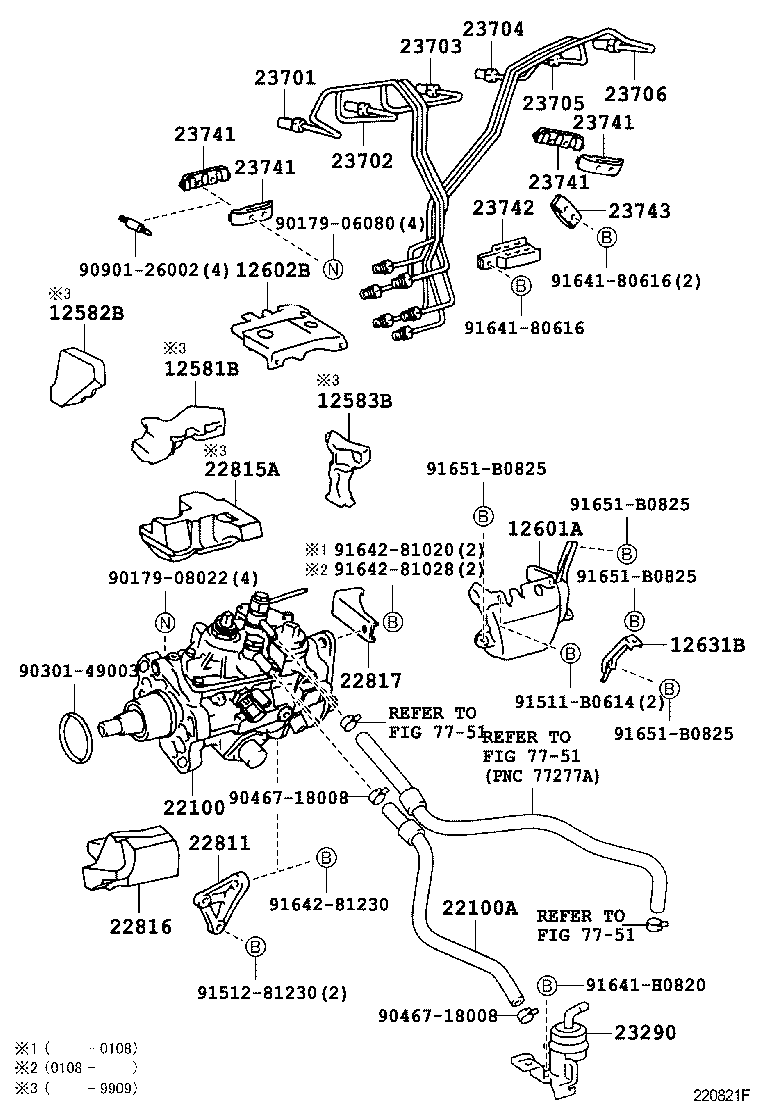

INJECTION PUMP ASSEMBLY

(9907- )1HDFTE

COASTER | INJECTION PUMP ASSEMBLY 12581B - INSULATOR, CYLINDER BLOCK, NO.1 12582B - INSULATOR, CYLINDER BLOCK, NO.2 12583B - INSULATOR, CYLINDER BLOCK, NO.3 12601A - INSULATOR, CYLINDER BLOCK 12602B - COVER SUB-ASSY, ENGINE, NO.2 12631B - BRACKET, ENGINE COVER 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22811 - STAY, INJECTION PUMP, NO.1 22815A - INSULATOR, INJECTION PUMP 22816 - INSULATOR, INJECTION PUMP, NO.2 22817 - BRACKET, PUMP STAY 23290 - DAMPER ASSY, FUEL SUCTION 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23705 - PIPE SUB-ASSY, INJECTION, NO.5 23706 - PIPE SUB-ASSY, INJECTION, NO.6 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23742 - CLAMP, INJECTION PIPE, NO.2 23743 - CLAMP, INJECTION PIPE, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
