TOYOTA COASTER XZB51-ZCPZH / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

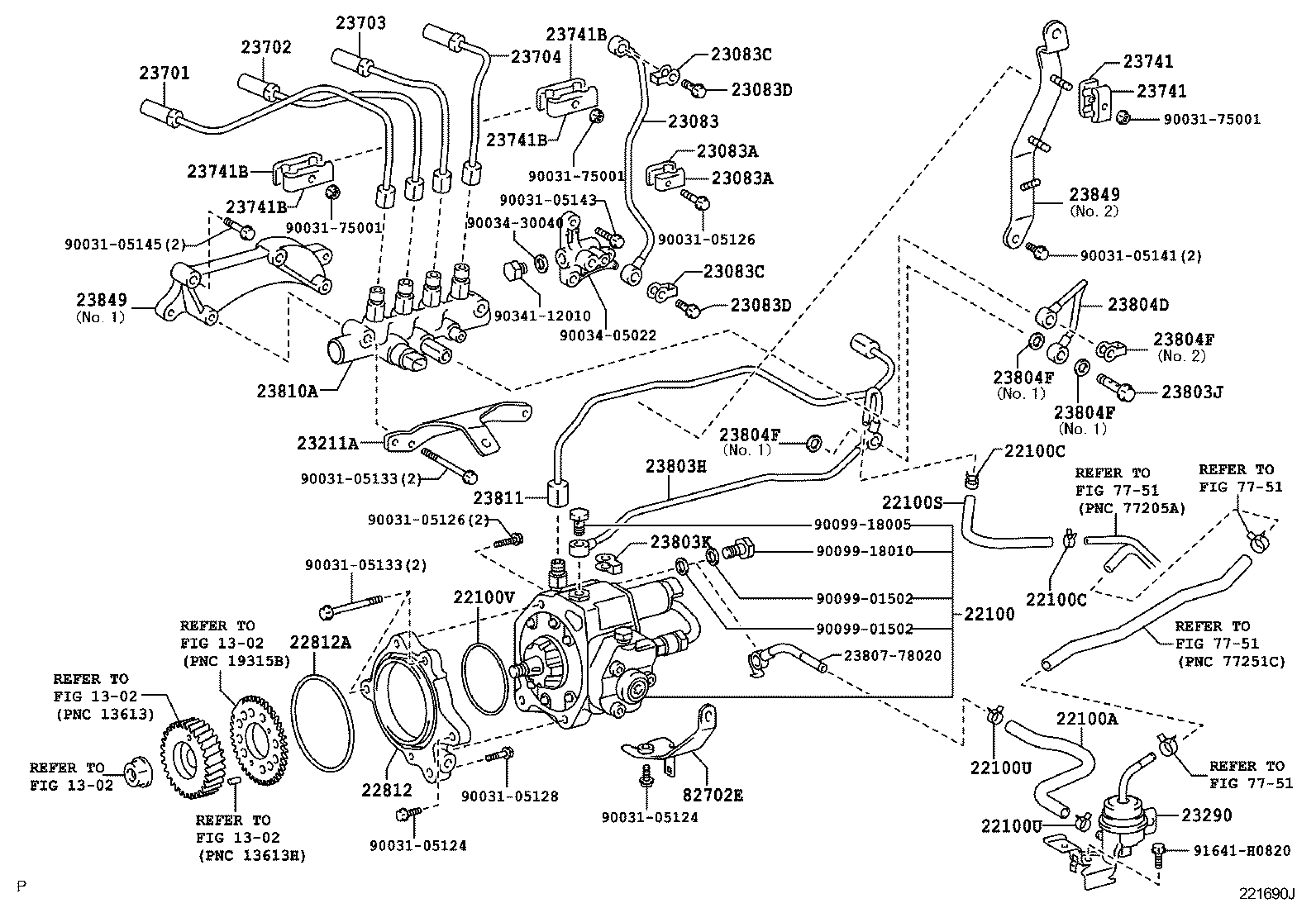

INJECTION PUMP ASSEMBLY

(0408-0708)N04C

COASTER | INJECTION PUMP ASSEMBLY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22100C - CLAMP, FUEL HOSE, NO.2 22100C - CLAMP, FUEL HOSE, NO.2 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) 22100V - RING, O(FOR INJECTION PUMP) 22812 - RETAINER, INJECTION PUMP 22812A - RING, O 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 23083A - CLAMP, NOZZLE LEAKAGE 23083A - CLAMP, NOZZLE LEAKAGE 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23211A - BRACKET(FOR INJECTION PIPE NO.3) 23290 - DAMPER ASSY, FUEL SUCTION 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23803H - PIPE SUB-ASSY, FUEL RETURN 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) 23803K - GASKET(FOR FUEL RETURN PIPE) 23804D - PIPE SUB-ASSY, FUEL, NO.4 23804F - GASKET(FOR FUEL PIPE NO.4) 23804F - GASKET(FOR FUEL PIPE NO.4) 23804F - GASKET(FOR FUEL PIPE NO.4) 23804F - GASKET(FOR FUEL PIPE NO.4) ** Std Part 23810A - RAIL ASSY, COMMON 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) 23849 - SUPPORT, FUEL 23849 - SUPPORT, FUEL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 82702E - BRACKET SUB-ASSY, WIRING HARNESS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
