TOYOTA DYNA TOYOACE HV XKU344-TKMQW3 / TOOL-ENGINE-FUEL / TIMING GEAR COVER REAR END PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

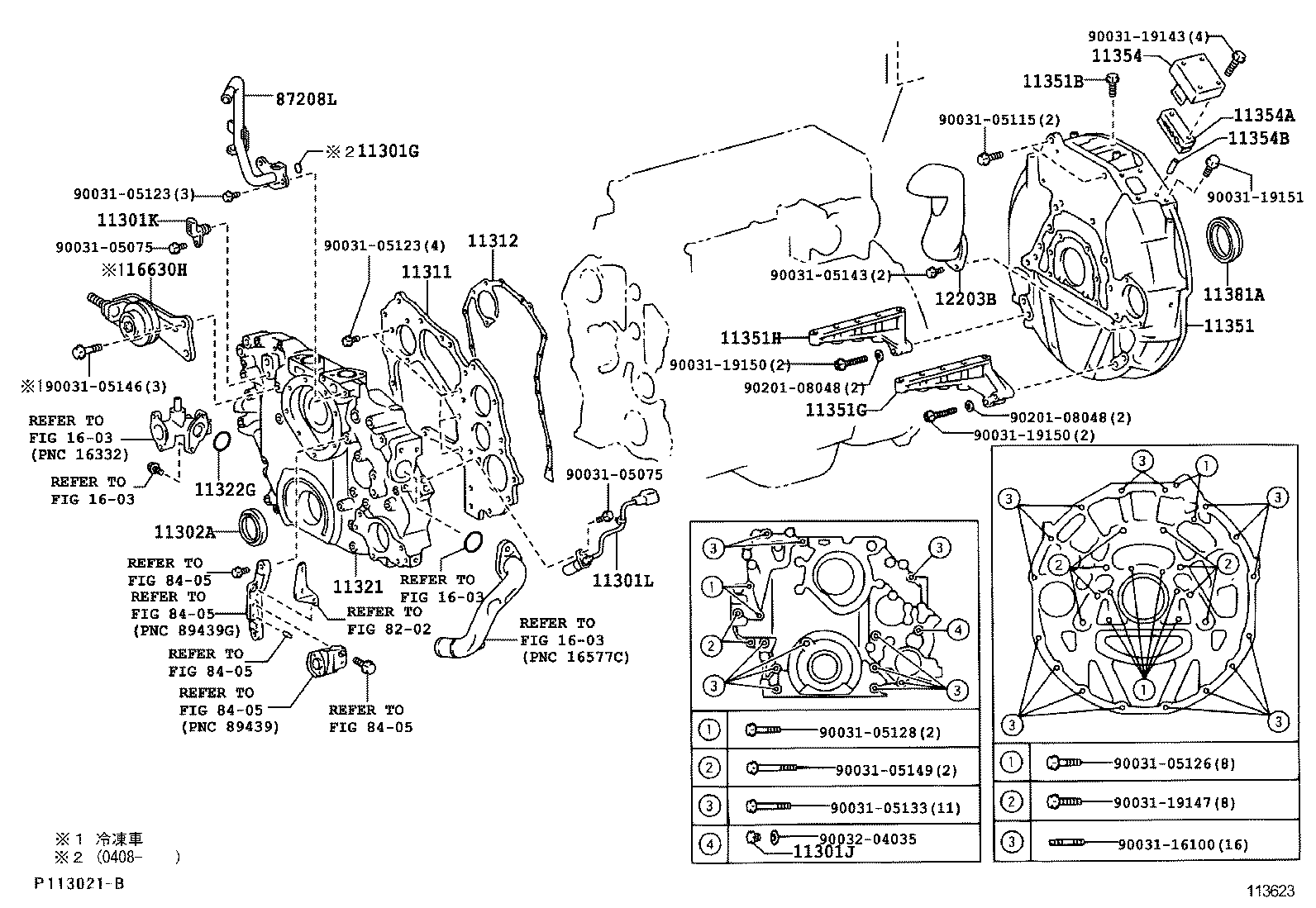

TIMING GEAR COVER REAR END PLATE

(0310-0610)

DYNA TOYOACE HV | TIMING GEAR COVER REAR END PLATE 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) 11301K - SENSOR, CRANK POSITION 11301L - SENSOR, CRANK POSITION NO.2 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) 11311 - PLATE, FRONT END 11312 - GASKET, FRONT END PLATE 11321 - CASE, TIMING GEAR 11322G - RING, O(FOR TIMING GEAR COVER) 11351 - HOUSING, FLYWHEEL 11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING) 11351G - STAY, LH(FOR FLYWHEEL HOUSING) 11351H - STAY, RH(FOR FLYWHEEL HOUSING) 11354 - SEAL, FLYWHEEL HOUSING DUST 11354A - SEAL(FOR FLYWHEEL HOUSING) 11354B - SPACER(FOR FLYWHEEL HOUSING) 11381A - SEAL, ENGINE REAR OIL 12203B - PIPE SUB-ASSY, VENTILATION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 16630H - PULLEY ASSY, IDLER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87208L - PIPE SUB-ASSY, WATER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
