TOYOTA DYNA TOYOACE BU306-PQMMS3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

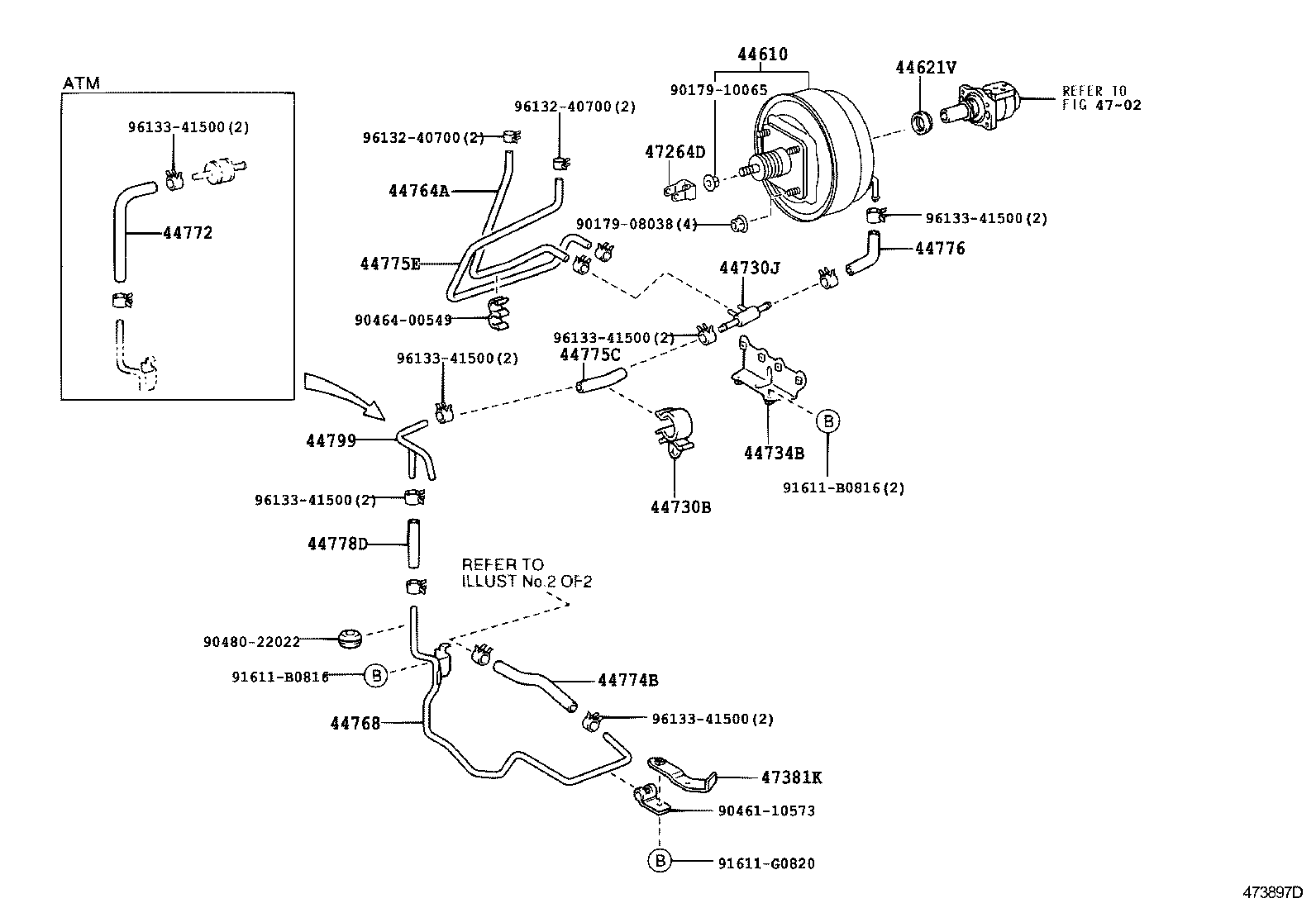

BRAKE BOOSTER VACUUM TUBE

ILLUST NO. 1 OF 2(0206-0406)BU30#,RZU300,XZU307,347..DCB

DYNA TOYOACE | BRAKE BOOSTER VACUUM TUBE 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44730B - CLAMP, VACUUM HOSE 44730J - WAY(FOR BOOSTER VACUUM) 44734B - BRACKET, BOOSTER SUPPORT 44764A - HOSE, BOOSTER VACUUM 44768 - TUBE, BOOSTER VACUUM 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44774B - HOSE, UNION TO CONNECTOR TUBE 44775C - HOSE, CONNECTOR TO WAY 44775E - HOSE, WAY TO CONNECTOR 44776 - HOSE, BRAKE BOOSTER 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE 44799 - WAY, BRAKE VACUUM HOSE ** Refer Fig 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
