TOYOTA DYNA TOYOACE LY220-TBPDS / POWERTRAIN-CHASSIS / PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

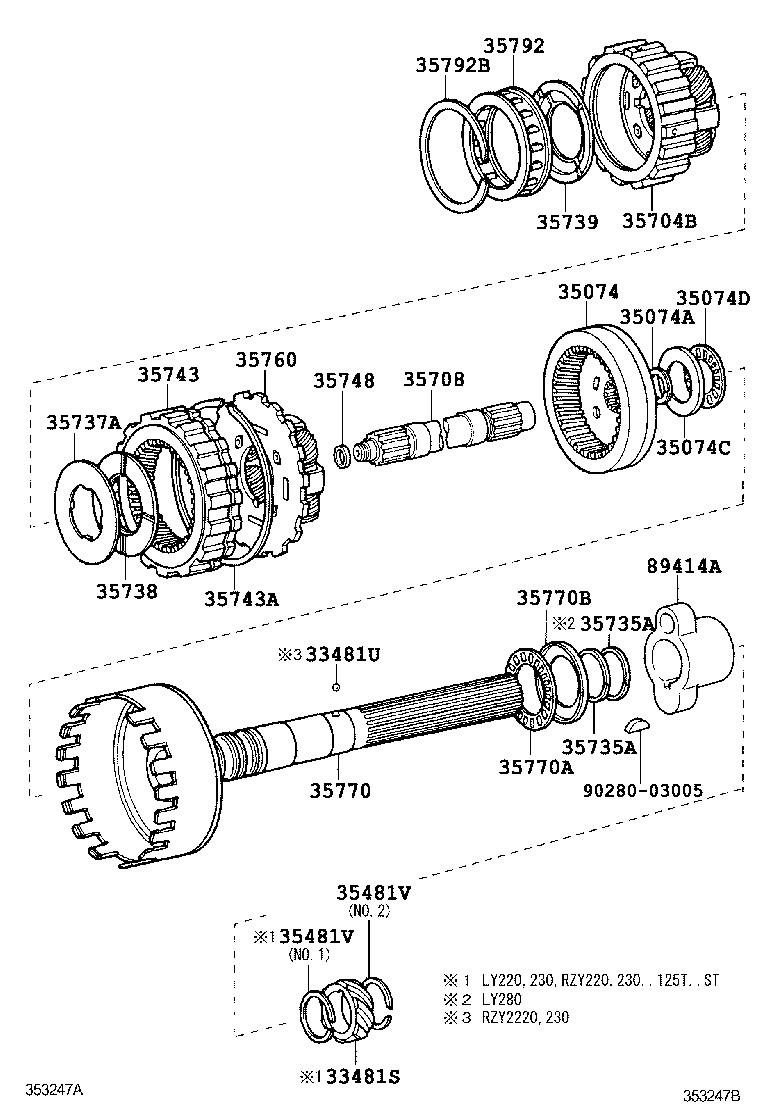

PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

A44DE,A44DF,A45DE (0107- )LY220,230,280,RZY220,230..TS..ATM

DYNA TOYOACE | PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM 33481S - GEAR, SPEEDOMETER DRIVE (ATM) 33481U - BALL (FOR SPEEDOMETER DRIVE GEAR) 35074 - GEAR SUB-ASSY, REAR PLANETARY RING 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR) 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) 35704B - GEAR SUB-ASSY, FRONT PLANETARY 35708 - SHAFT SUB-ASSY, INTERMEDIATE 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 35743 - GEAR, FRONT PLANETARY RING 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL 35760 - GEAR ASSY, REAR PLANETARY 35770 - SHAFT ASSY, OUTPUT 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) 35792 - CLUTCH, 1 WAY, NO.2 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) 89414A - ROTOR, SENSOR ** Std Part
