TOYOTA DYNA TOYOACE RZU301-TQPMC3 / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CAMSHAFT VALVE

(0005- )3RZ#

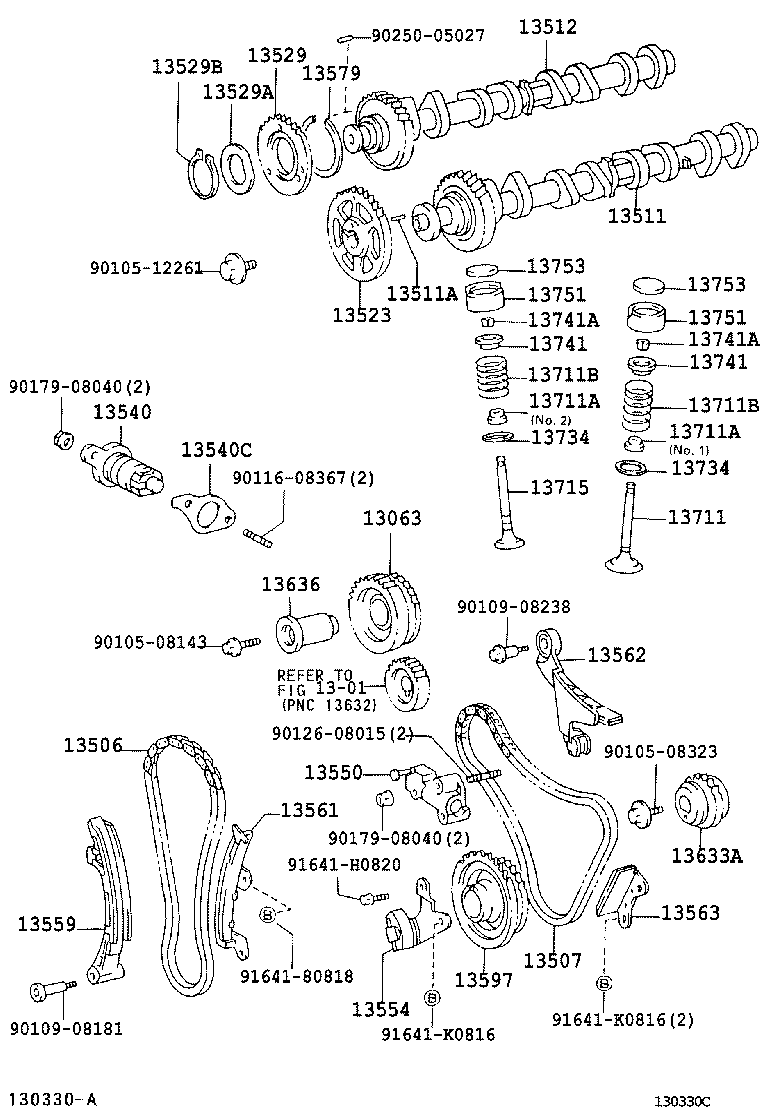

DYNA TOYOACE | CAMSHAFT VALVE ** Refer Fig 13063 - GEAR SUB-ASSY, BALANCESHAFT DRIVE 13506 - CHAIN SUB-ASSY 13507 - CHAIN SUB-ASSY, NO.2 13511 - CAMSHAFT 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) 13512 - CAMSHAFT, NO.2 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING 13529 - GEAR, CAMSHAFT SUB 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) 13540 - TENSIONER ASSY, CHAIN, NO.1 13540C - GASKET(FOR CHAIN TENSIONER) 13550 - TENSIONER ASSY, CHAIN, NO.2 13554 - DAMPER, CHAIN VIBRATION, NO.4 13559 - SLIPPER, CHAIN TENSIONER 13561 - DAMPER, CHAIN VIBRATION, NO.1 13562 - DAMPER, CHAIN VIBRATION, NO.2 13563 - DAMPER, CHAIN VIBRATION, NO.3 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT 13597 - SPROCKET, CRANKSHAFT TIMING, NO.2 13633A - GEAR, BALANCESHAFT DRIVEN, NO.2 13636 - SHAFT, BALANCESHAFT DRIVE GEAR 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13715 - VALVE, EXHAUST 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13751 - LIFTER, VALVE 13751 - LIFTER, VALVE 13753 - SHIM, VALVE ADJUSTING 13753 - SHIM, VALVE ADJUSTING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
