TOYOTA DYNA TOYOACE XZU388-PKMMW3 / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

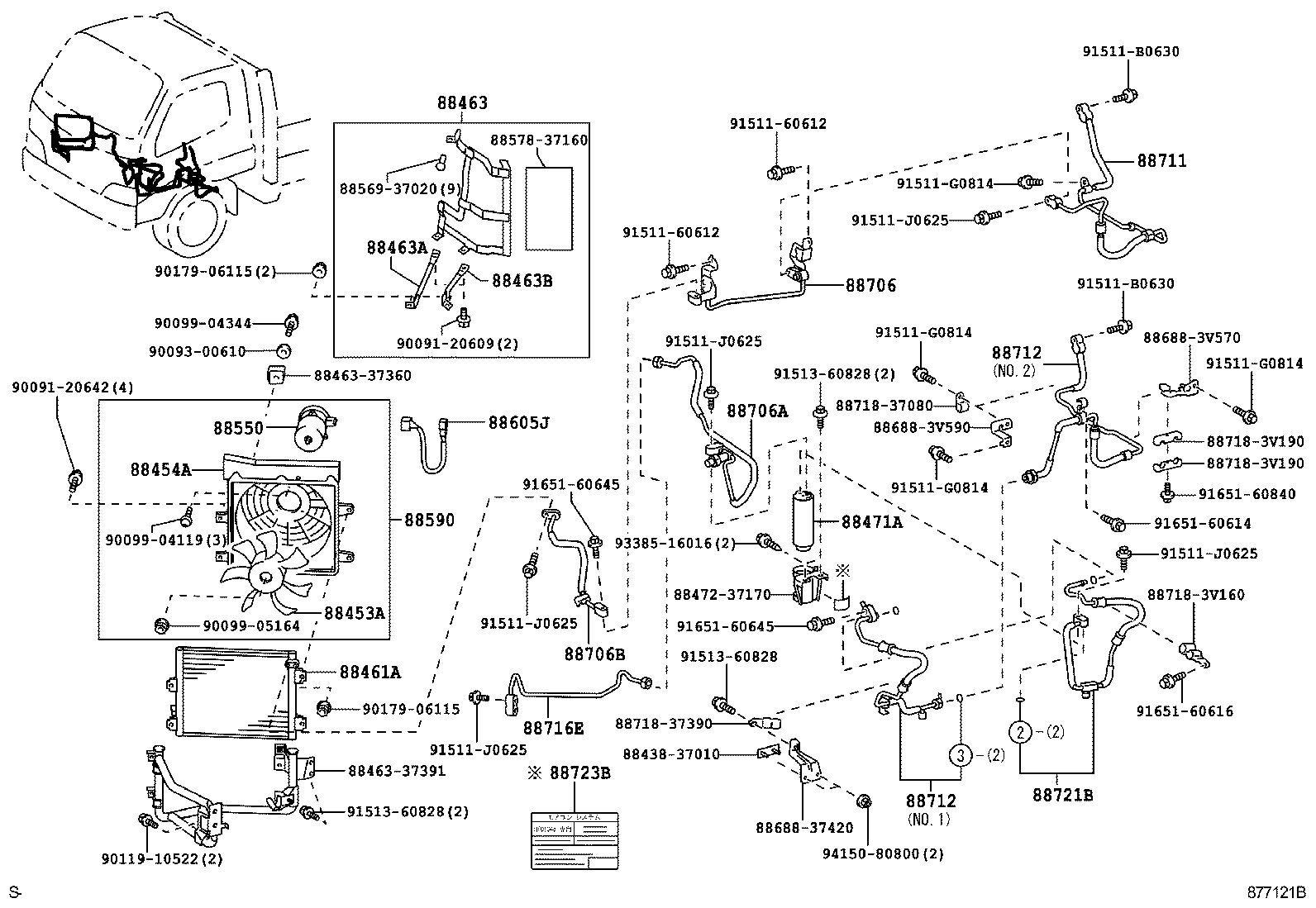

ILLUST NO. 1 OF 2(0406- )XZU378,388..DCB

DYNA TOYOACE | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88453A - FAN, COOLING 88454A - SHROUD, FAN 88461A - CORE, COOLER CONDENSER 88463 - BRACKET, COOLER CONDENSER, NO.1 ** Std Part ** Std Part 88463A - BRACKET, COOLER CONDENSER, NO.2 88463B - BRACKET, COOLER CONDENSER, NO.3 88471A - TANK, RECEIVER ** Std Part 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING ** Std Part ** Std Part ** Std Part 88706 - PIPE SUB-ASSY, LIQUID 88706A - TUBE SUB-ASSY, LIQUID, A 88706B - TUBE SUB-ASSY, LIQUID, B 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716E - PIPE, COOLER REFRIGERANT LIQUID, E ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88721B - HOSE, LIQUID, B 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
