TOYOTA GAIA CXM10G-BPSET / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

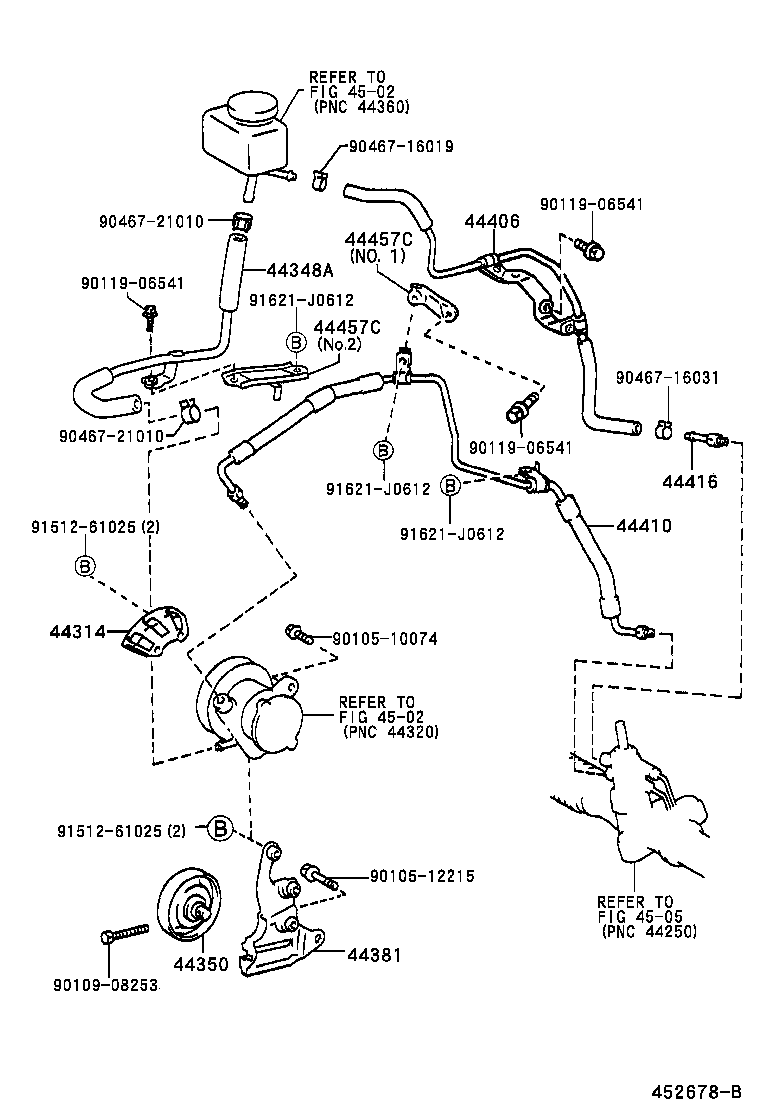

POWER STEERING TUBE

(0104- )CXM10

GAIA | POWER STEERING TUBE 44314 - COVER, PULLEY 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44350 - PULLEY ASSY, POWER STEERING IDLE 44381 - BRACKET, POWER STEERING IDLE PULLEY 44406 - TUBE SUB-ASSY, RETURN 44410 - TUBE ASSY, PRESSURE FEED 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
