TOYOTA HIACE REGIUSACE TRH124B-ZRPDK / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

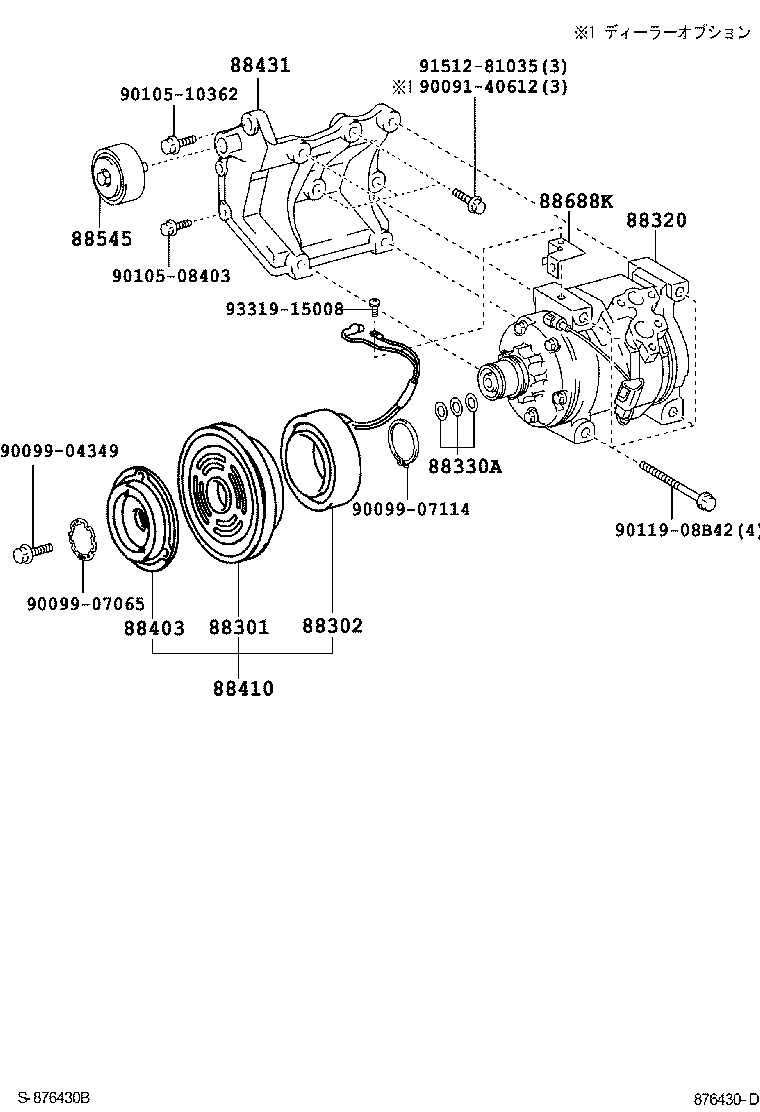

ILLUST NO. 1 OF 2(0308- )TRH102,112,12#

 HIACE REGIUSACE |  HEATING AIR CONDITIONING COMPRESSOR 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88320 - COMPRESSOR ASSY, COOLER 88330A - WASHER (FOR MAGNET CLUTCH) 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88410 - CLUTCH ASSY, MAGNET 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88545 - PULLEY ASSY, IDLE 88688K - BRACKET, COOLER COMPRESSOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
