TOYOTA HIACE REGIUSACE TRH124B-ZRPDK / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

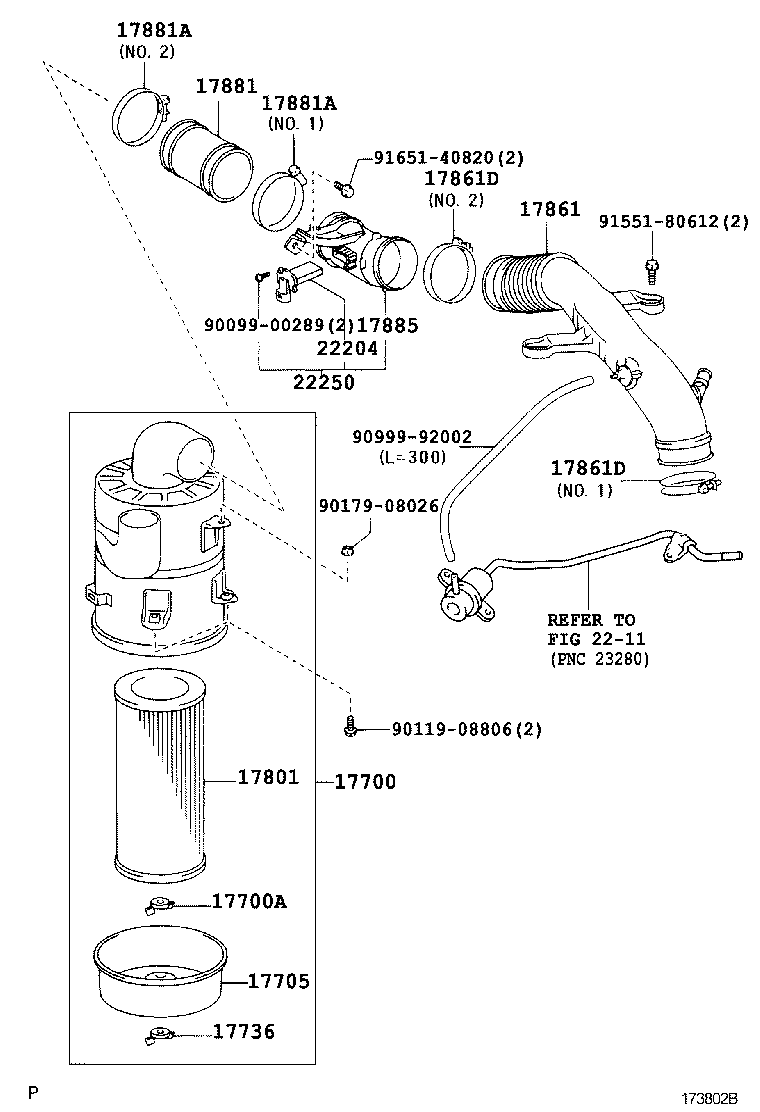

ILLUST NO. 1 OF 2(0308- )1TRFE

 HIACE REGIUSACE |  AIR CLEANER 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17705 - CAP SUB-ASSY, AIR CLEANER 17736 - NUT, AIR CLEANER CASE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17861 - CONNECTOR, INTAKE AIR 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17885 - PIPE, AIR CLEANER ** Refer Fig 22204 - METER SUB-ASSY, INTAKE AIR FLOW 22250 - METER ASSY, INTAKE AIR FLOW  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
