TOYOTA LAND CRUISER PRADO KDJ120W-GKPEY / POWERTRAIN-CHASSIS / CENTER SUPPORT PLANETARY SUN GEAR ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

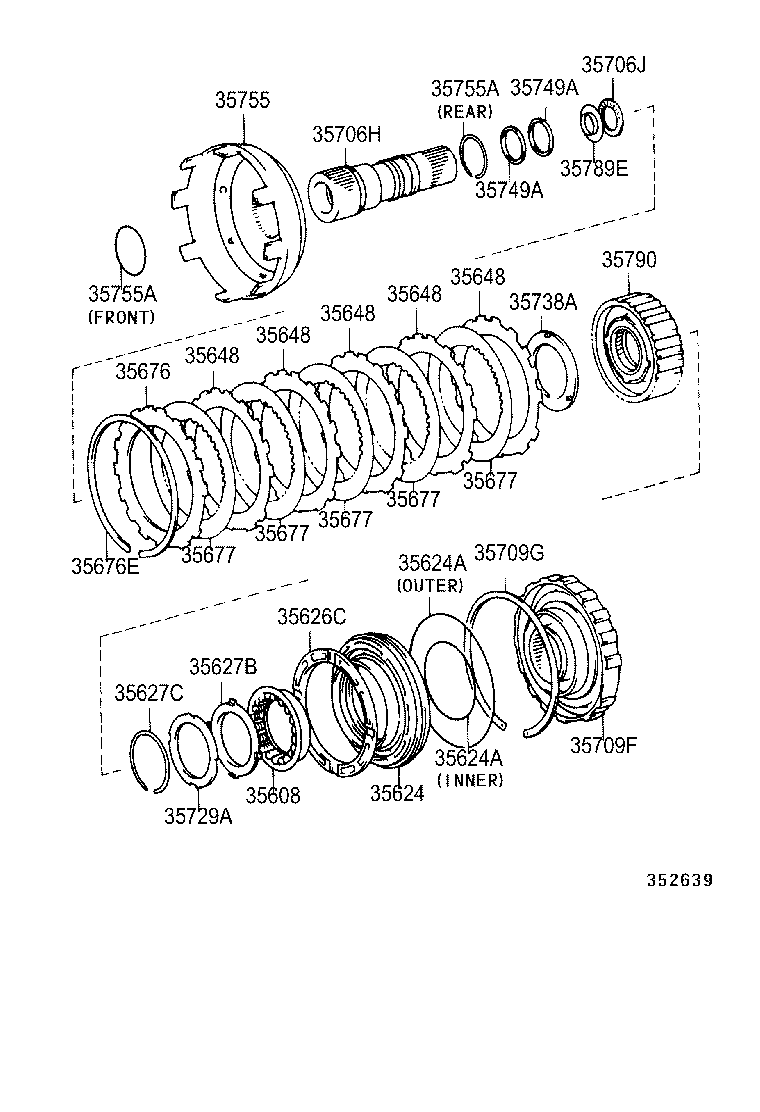

CENTER SUPPORT PLANETARY SUN GEAR ATM

A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#

LAND CRUISER PRADO | CENTER SUPPORT PLANETARY SUN GEAR ATM 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN 35624 - PISTON, 2ND BRAKE 35624A - RING, O (FOR 2ND BRAKE PISTON) 35624A - RING, O (FOR 2ND BRAKE PISTON) 35626C - SLEEVE, 2ND BRAKE PISTON 35627B - SEAT, 2ND BRAKE PISTON RETURN SPRING 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT) 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) 35677 - DISC, CLUTCH (FOR 2ND BRAKE) 35677 - DISC, CLUTCH (FOR 2ND BRAKE) 35677 - DISC, CLUTCH (FOR 2ND BRAKE) 35677 - DISC, CLUTCH (FOR 2ND BRAKE) 35677 - DISC, CLUTCH (FOR 2ND BRAKE) 35706H - GEAR SUB-ASSY, PLANETARY SUN 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) 35709F - DRUM SUB-ASSY, 2ND BRAKE 35709G - RING, HOLE SNAP (FOR 2ND BRAKE DRUM) 35729A - WASHER, PLANETARY CARRIER THRUST, NO.4 35738A - WASHER, 1 WAY CLUTCH THRUST, NO.1 35749A - RING, SUN GEAR SHAFT OIL SEAL 35749A - RING, SUN GEAR SHAFT OIL SEAL 35755 - DRUM, SUN GEAR INPUT 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) 35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR) 35790 - CLUTCH ASSY, 1 WAY
