TOYOTA MARK 2 MARK 2 BLIT GX110-AEPQK / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

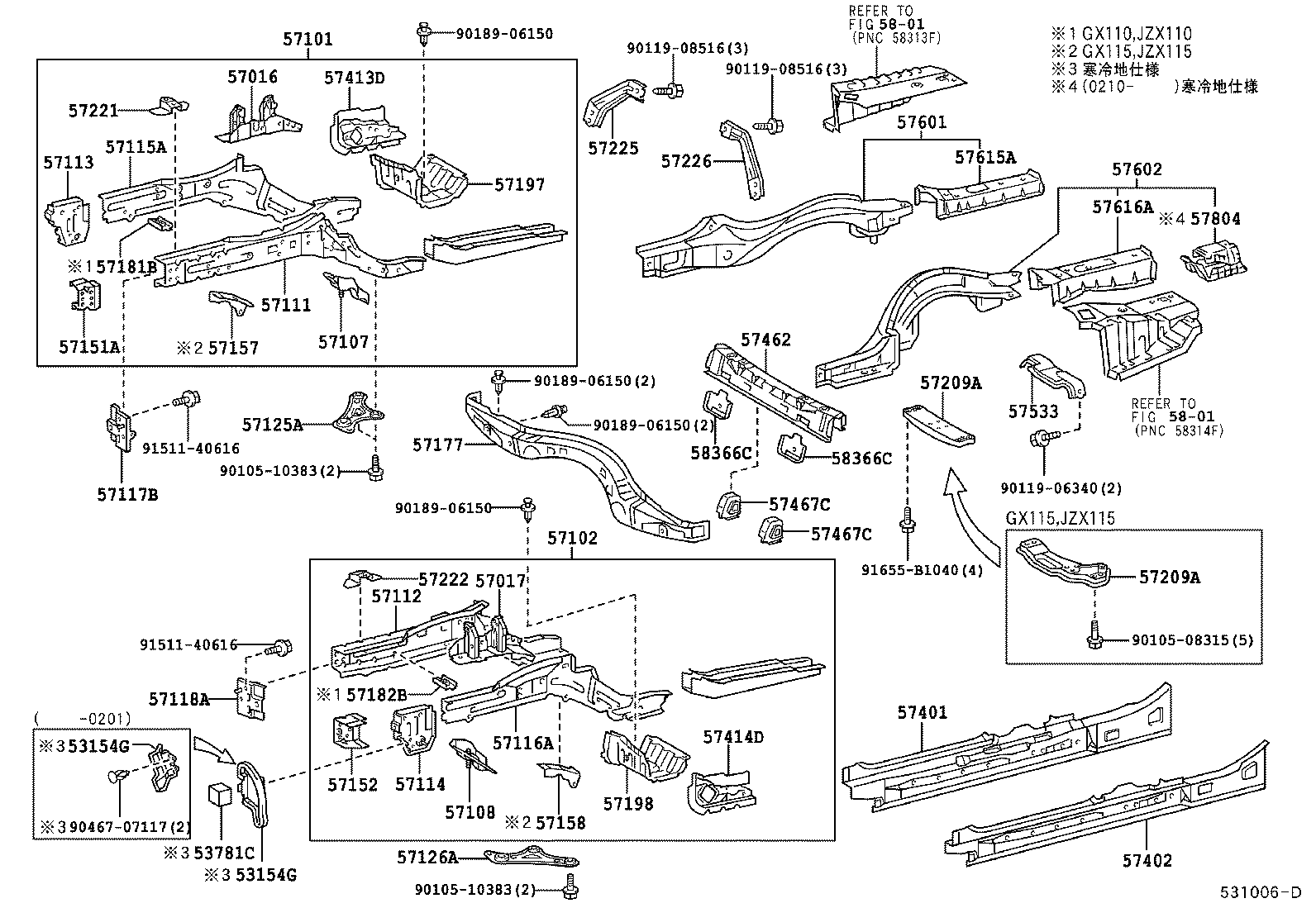

FLOOR SIDE MEMBER

ILLUST NO. 1 OF 2(0010- )SED

MARK 2 MARK 2 BLIT | FLOOR SIDE MEMBER 53154G - GUIDE, RADIATOR GRILLE SIDE AIR, LH 53154G - GUIDE, RADIATOR GRILLE SIDE AIR, LH 53781C - SEAL, FRONT FENDER APRON, LOWER 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57107 - BRACKET SUB-ASSY, STRUT BAR, RH 57108 - BRACKET SUB-ASSY, STRUT BAR, LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH 57125A - PLATE, STRUT BAR BRACKET, RH 57126A - PLATE, STRUT BAR BRACKET, LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH 57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH 57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH 57182B - PLATE, FRONT SIDE MEMBER, NO.3 LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING 57221 - BRACKET, FRONT SIDE MEMBER, RH 57222 - BRACKET, FRONT SIDE MEMBER, LH 57225 - BRACE, FRONT MOUNTING BRACKET, RH 57226 - BRACE, FRONT MOUNTING BRACKET, LH 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57413D - EXTENSION, FLOOR SIDE, INNER RH 57414D - EXTENSION, FLOOR SIDE, INNER LH 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 57467C - STIFFENER, CENTER FLOOR CROSS MEMBER 57467C - STIFFENER, CENTER FLOOR CROSS MEMBER 57533 - BRACE, FRONT FLOOR, CENTER 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH ** Refer Fig ** Refer Fig 58366C - REINFORCEMENT, FUEL TANK SUPPORT, REAR 58366C - REINFORCEMENT, FUEL TANK SUPPORT, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
