TOYOTA MARK 2 MARK 2 BLIT JZX110-AEAZH / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

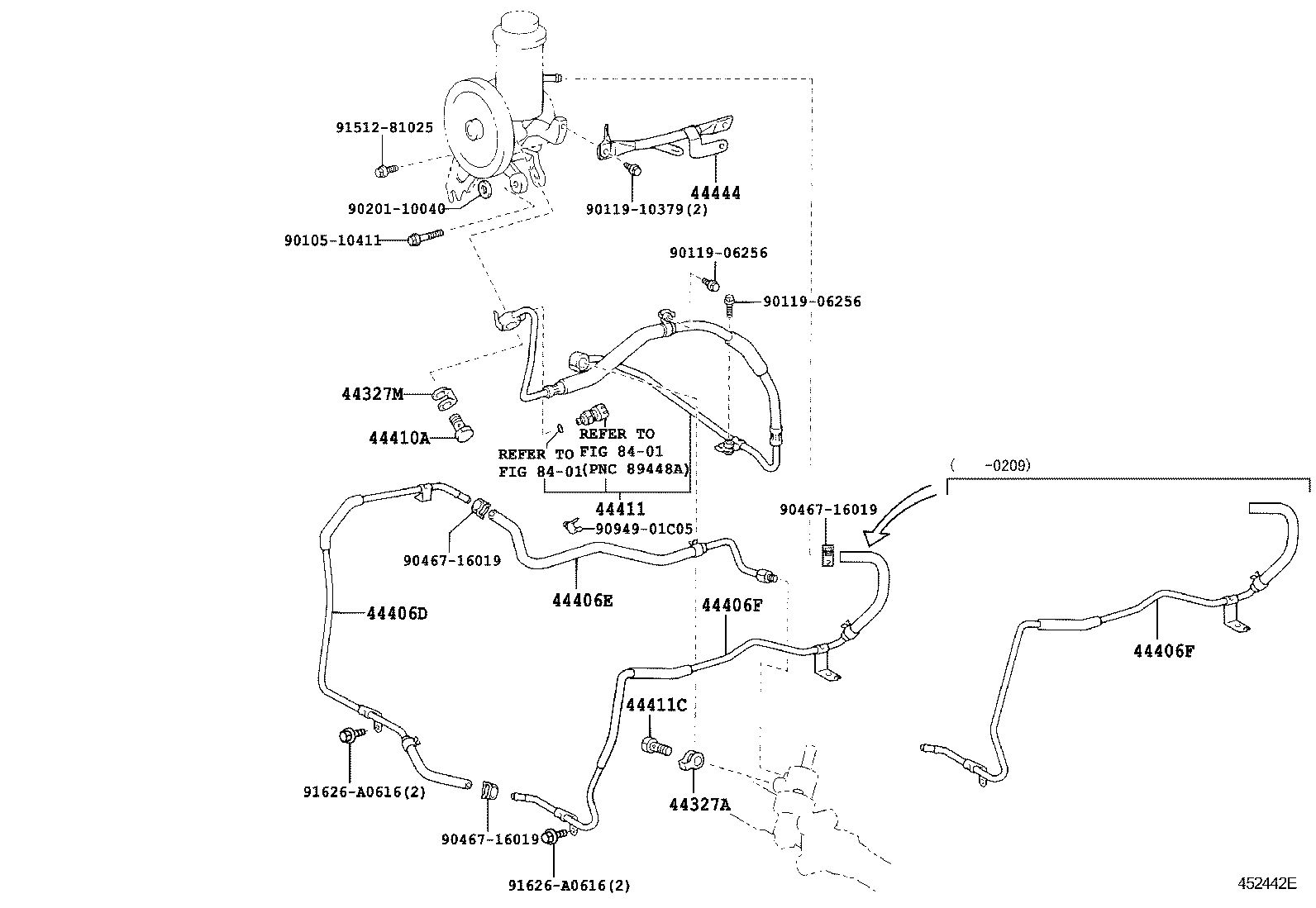

POWER STEERING TUBE

(0010- )JZX110..GD,GDG,GDS,IRS

MARK 2 MARK 2 BLIT | POWER STEERING TUBE 44327A - GASKET, PRESSURE PORT, NO.1 44327M - GASKET, PRESSURE PORT, NO.2 44406D - TUBE SUB-ASSY, RETURN, NO.1 44406E - TUBE SUB-ASSY, RETURN, NO.2 44406F - TUBE SUB-ASSY, RETURN, NO.3 44406F - TUBE SUB-ASSY, RETURN, NO.3 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44444 - STAY, PUMP, REAR ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
