TOYOTA MARK 2 MARK 2 BLIT JZX110-AEAZH / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

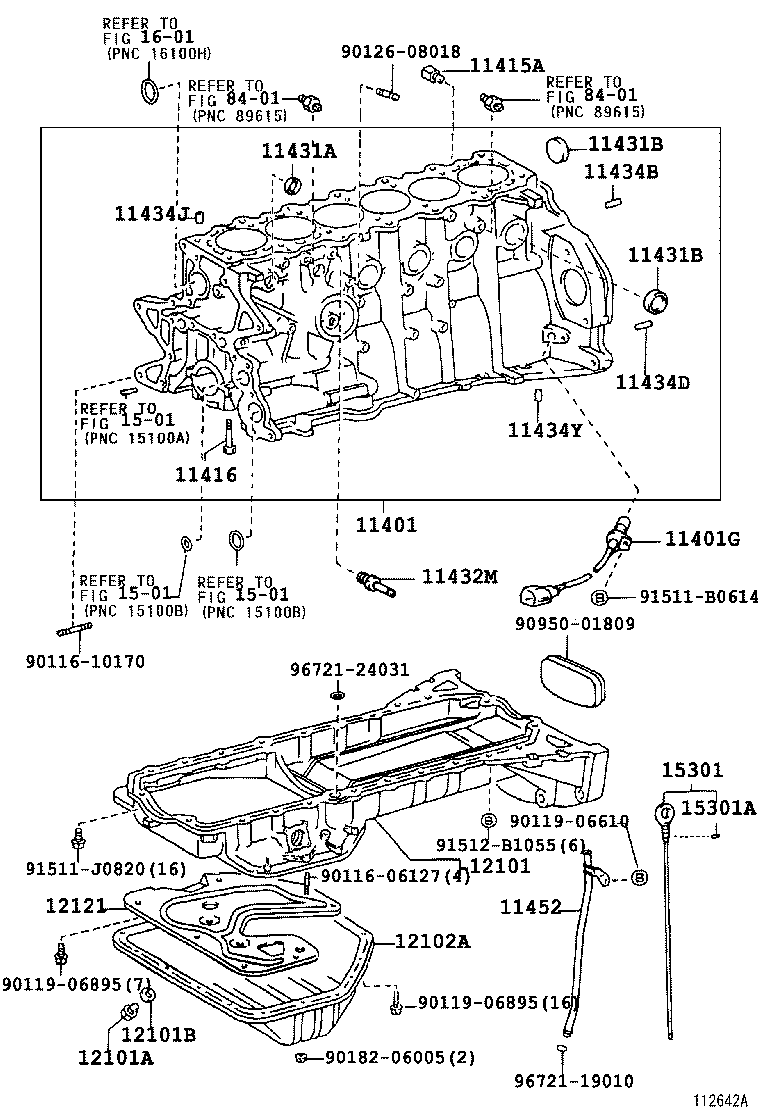

CYLINDER BLOCK

(0210- )1JZFSE..SED

MARK 2 MARK 2 BLIT | CYLINDER BLOCK 11401 - BLOCK SUB-ASSY, CYLINDER 11401G - SENSOR, CRANK POSITION 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11432M - UNION(FOR CYLINDER BLOCK) 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11434J - PIN, RING (FOR CYLINDER HEAD SET) 11434Y - PIN, STRAIGHT(FOR OIL PAN) 11452 - GUIDE, OIL LEVEL GAGE 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12102A - PAN SUB-ASSY, OIL, NO.2 12121 - PLATE, OIL PAN BAFFLE, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15301A - RING, O(FOR OIL LEVEL GAGE) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
