TOYOTA MARK 2 MARK 2 BLIT JZX110-AEAZH / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

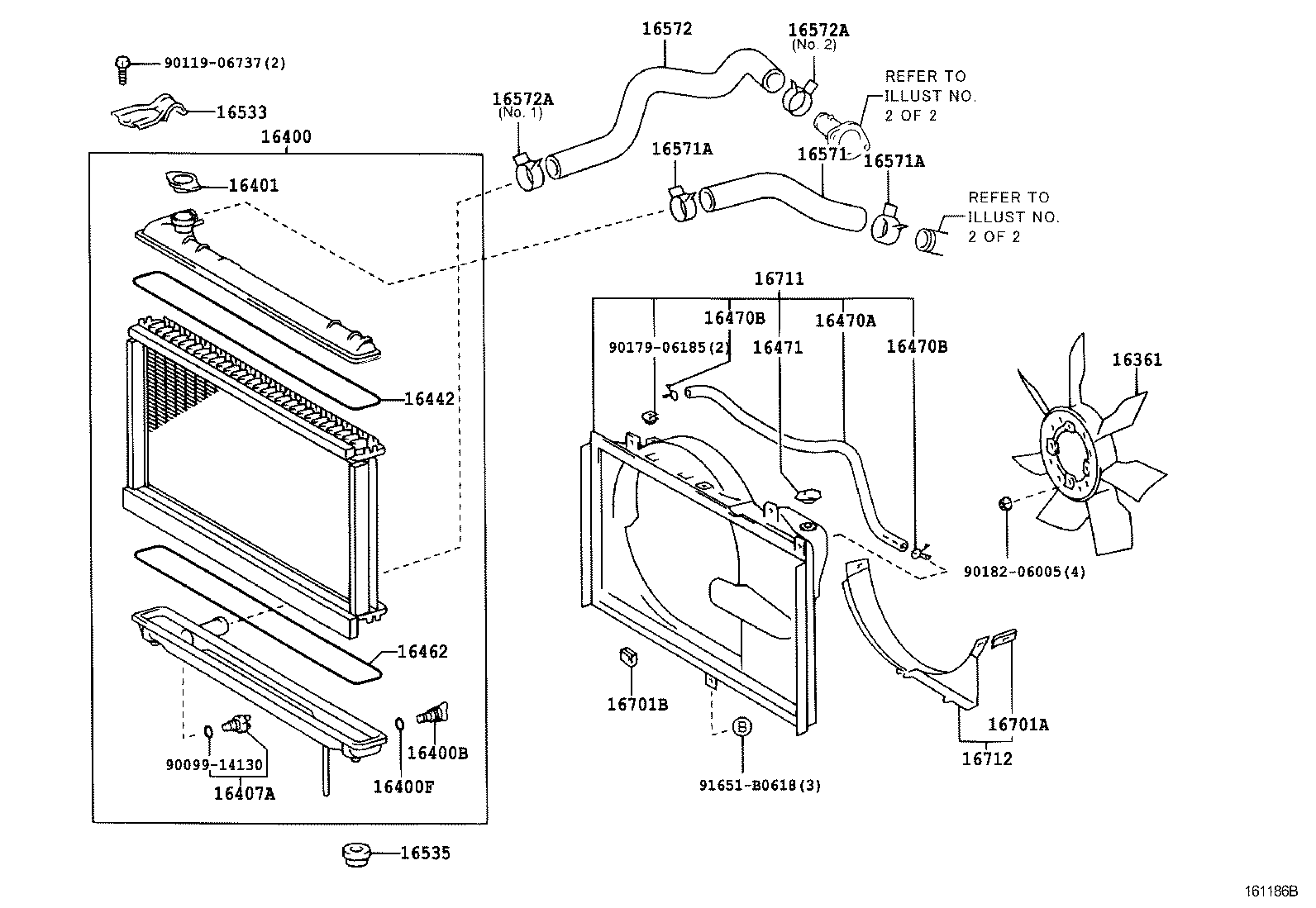

ILLUST NO. 1 OF 2(0010- )1JZFSE

MARK 2 MARK 2 BLIT | RADIATOR WATER OUTLET 16361 - FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16407A - COCK SUB-ASSY, RADIATOR DRAIN 16442 - RING, O(FOR RADIATOR UPPER TANK) 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701A - CLIP(FOR FAN SHROUD) 16701B - CUSHION, FAN SHROUD 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
