TOYOTA MARK 2 MARK 2 BLIT JZX110-AEAZH / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

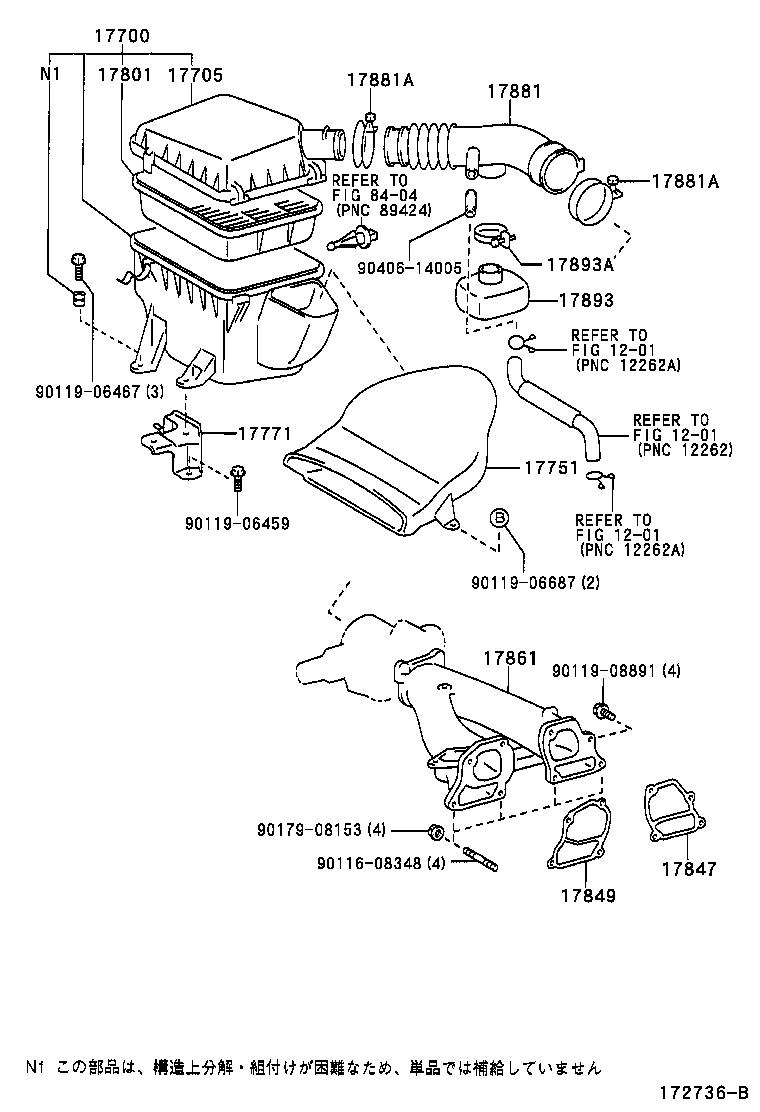

AIR CLEANER

(0010- )1JZFSE

MARK 2 MARK 2 BLIT | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17751 - INLET, AIR CLEANER, NO.1 17771 - BRACKET, AIR CLEANER INLET DUCT 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17847 - GASKET, INTAKE AIR CONNECTOR, NO.2 17849 - GASKET, INTAKE AIR CONNECTOR 17861 - CONNECTOR, INTAKE AIR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
