TOYOTA MARK 2 MARK 2 BLIT JZX110-AEMVZ / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

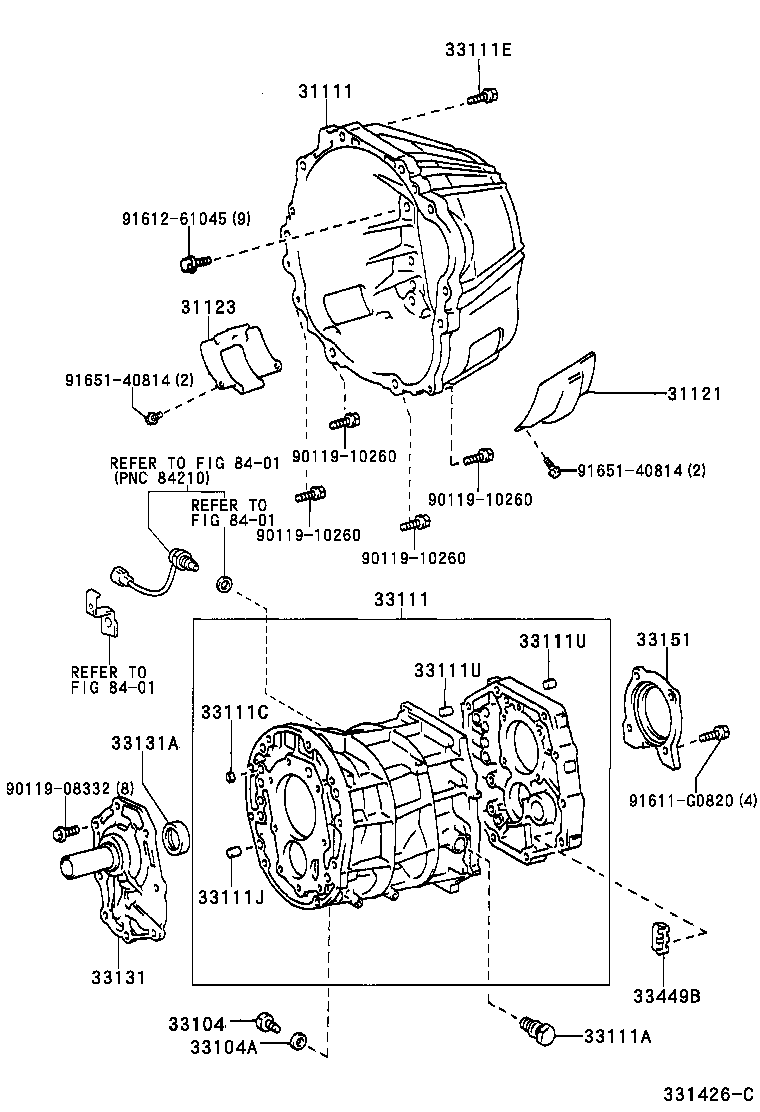

CLUTCH HOUSING TRANSMISSION CASE MTM

R154 (0010- )5F

MARK 2 MARK 2 BLIT | CLUTCH HOUSING TRANSMISSION CASE MTM 31111 - HOUSING, CLUTCH 31121 - COVER, CLUTCH HOUSING, NO.1 31123 - COVER, CLUTCH HOUSING, NO.2 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111A - PLUG, MANUAL TRANSMISSION CASE 33111C - PLUG(FOR TRANSMISSION CASE) 33111E - BOLT(FOR TRANSMISSION CASE & ENGINE SETTING) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) 33131 - RETAINER, BEARING, FRONT(MTM) 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) 33449B - MAGNET, TRANSMISSION ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
