TOYOTA MARK 2 MARK 2 BLIT JZX110-AEPQH / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

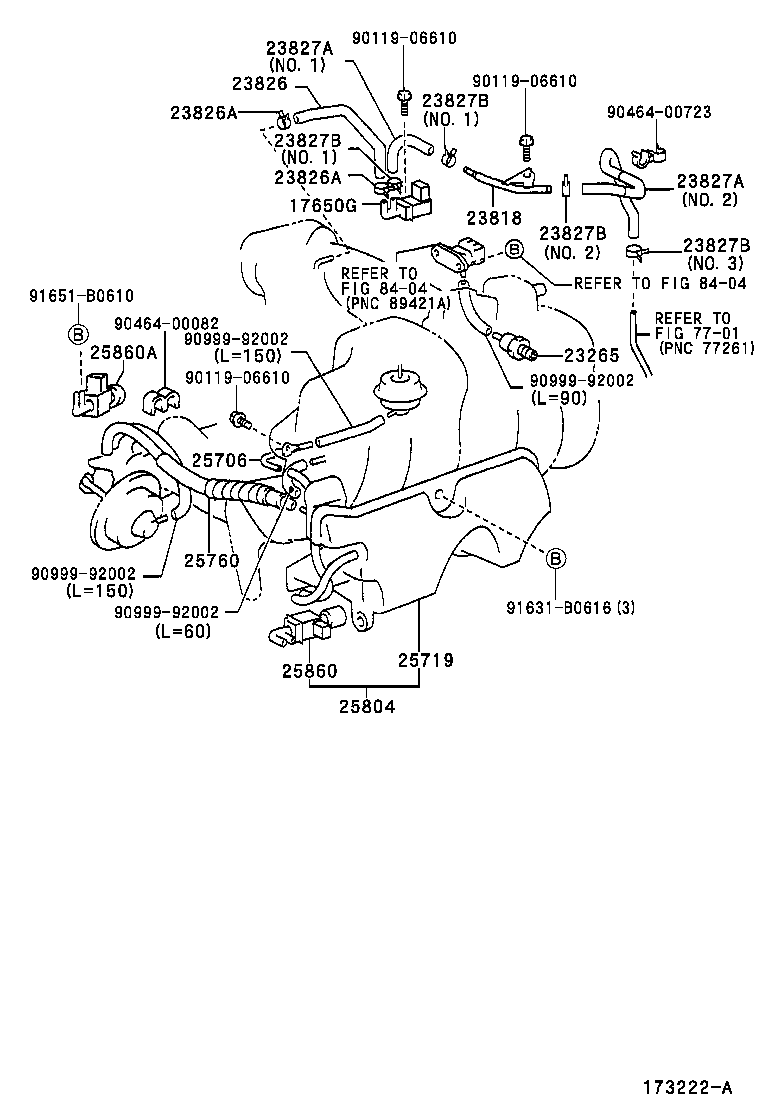

VACUUM PIPING

(0010- )1JZFSE

MARK 2 MARK 2 BLIT | VACUUM PIPING 17650G - VALVE, DUTY VACUUM SWITCHING 23265 - FILTER, GAS, NO.1 23818 - PIPE, FUEL VAPOR FEED 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 25719 - TANK, VACUUM SURGE 25760 - HOSE ASSY, VACUUM TRANSMITTING 25804 - VALVE SET, VACUUM CONTROL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860A - VALVE, VACUUM SWITCHING, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
