TOYOTA NOAH VOXY AZR65G-ARSSH / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

OIL COOLER TUBE ATM

A248E,A248F (0111- )4HC

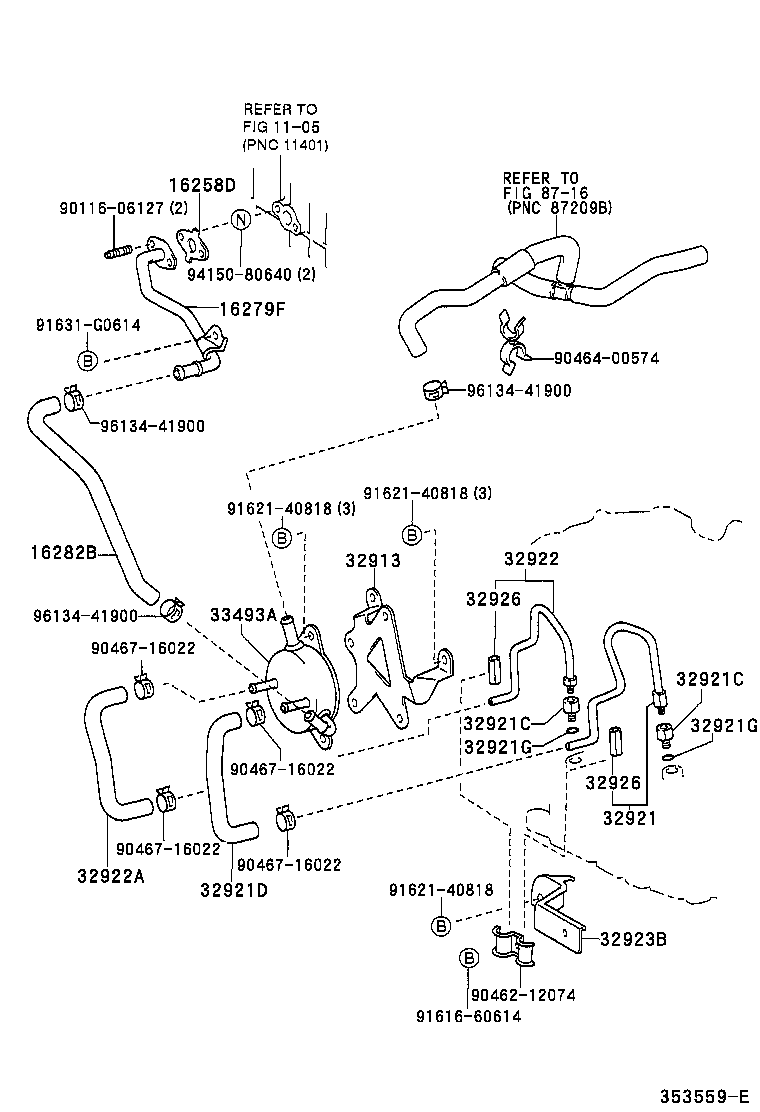

NOAH VOXY | OIL COOLER TUBE ATM ** Refer Fig 16258D - GASKET(FOR WATER BY-PASS PIPE) 16279F - PIPE, WATER BY-PASS, NO.3 16282B - HOSE, WATER BY-PASS, NO.5 32913 - BRACKET, OIL COOLER 32921 - TUBE, OIL COOLER INLET, NO.1 32921C - UNION(FOR OIL COOLER TUBE) 32921C - UNION(FOR OIL COOLER TUBE) 32921D - HOSE(FOR OIL COOLER INLET) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32922 - TUBE, OIL COOLER OUTLET, NO.1 32922A - HOSE(FOR OIL COOLER OUTLET) 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 33493A - COOLER, TRANSMISSION OIL ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
