TOYOTA WISH ZNE14G-HPPNK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(0301- )ZNE14

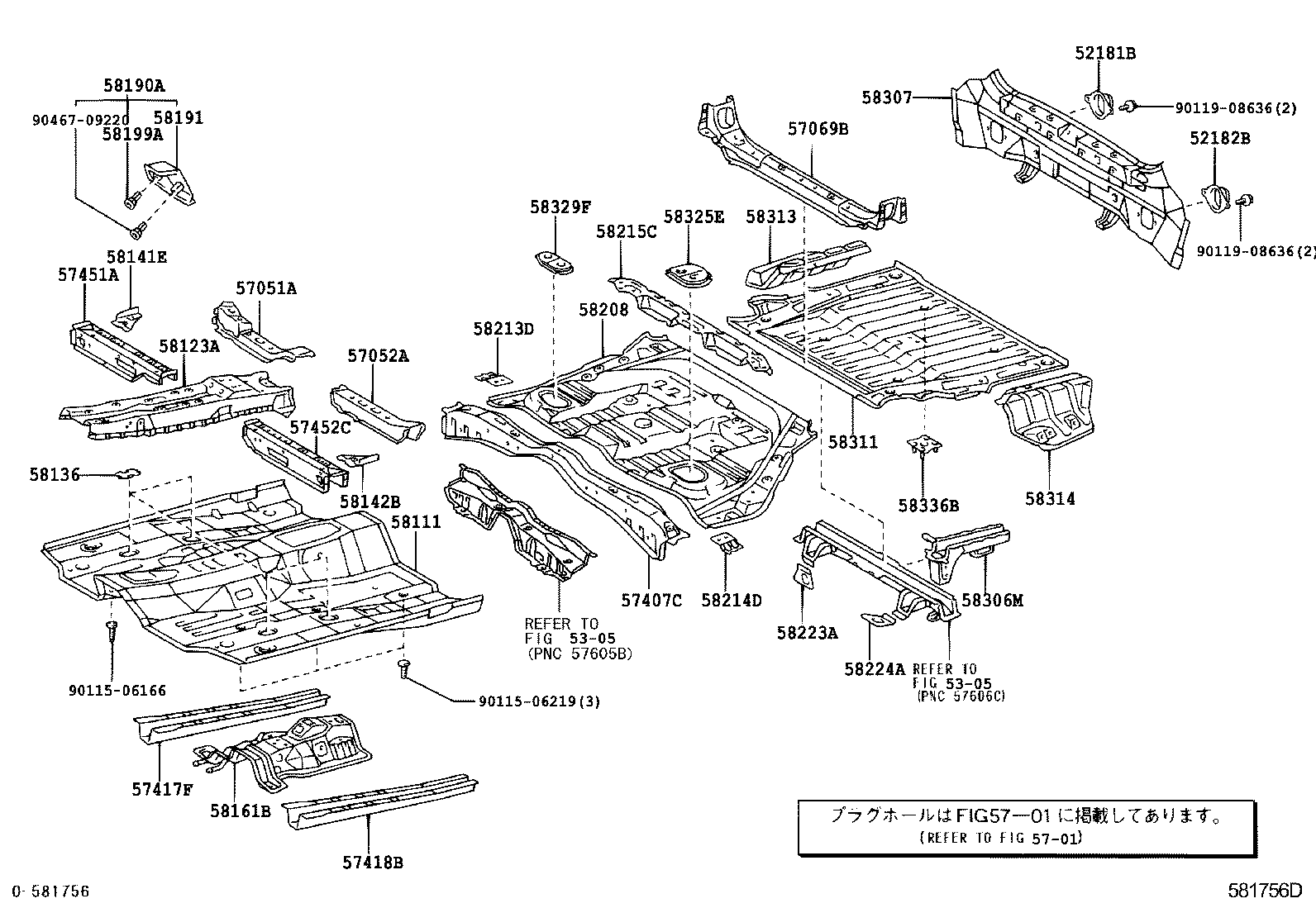

WISH | FLOOR PAN LOWER BACK PANEL 52181B - ARM, REAR BUMPER, RH 52182B - ARM, REAR BUMPER LH ** Refer Fig ** Refer Fig ** Refer Fig 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57069B - MEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH 57451A - MEMBER, FRONT FLOOR CROSS, RH 57452C - MEMBER, FRONT FLOOR CROSS, LH 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH 58142B - REINFORCEMNT, FRONT SIDE MEMBER TO FLOOR PAN, LH 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 58190A - REST ASSY, FRONT FLOOR FOOT 58191 - FOOTREST, FRONT FLOOR 58199A - CLIP, FOOTREST, NO.2 58208 - PAN, CENTER FLOOR 58213D - REINFORCEMENT, CENTER FLOOR PANEL 58214D - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH 58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH 58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH 58306M - PANEL SUB-ASSY, REAR FLOOR SIDE 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58336B - REINFORCEMENT, REAR FLOOR PAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
