TOYOTA ALTEZZA ALTEZZA GITA SXE10-AEAVF / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

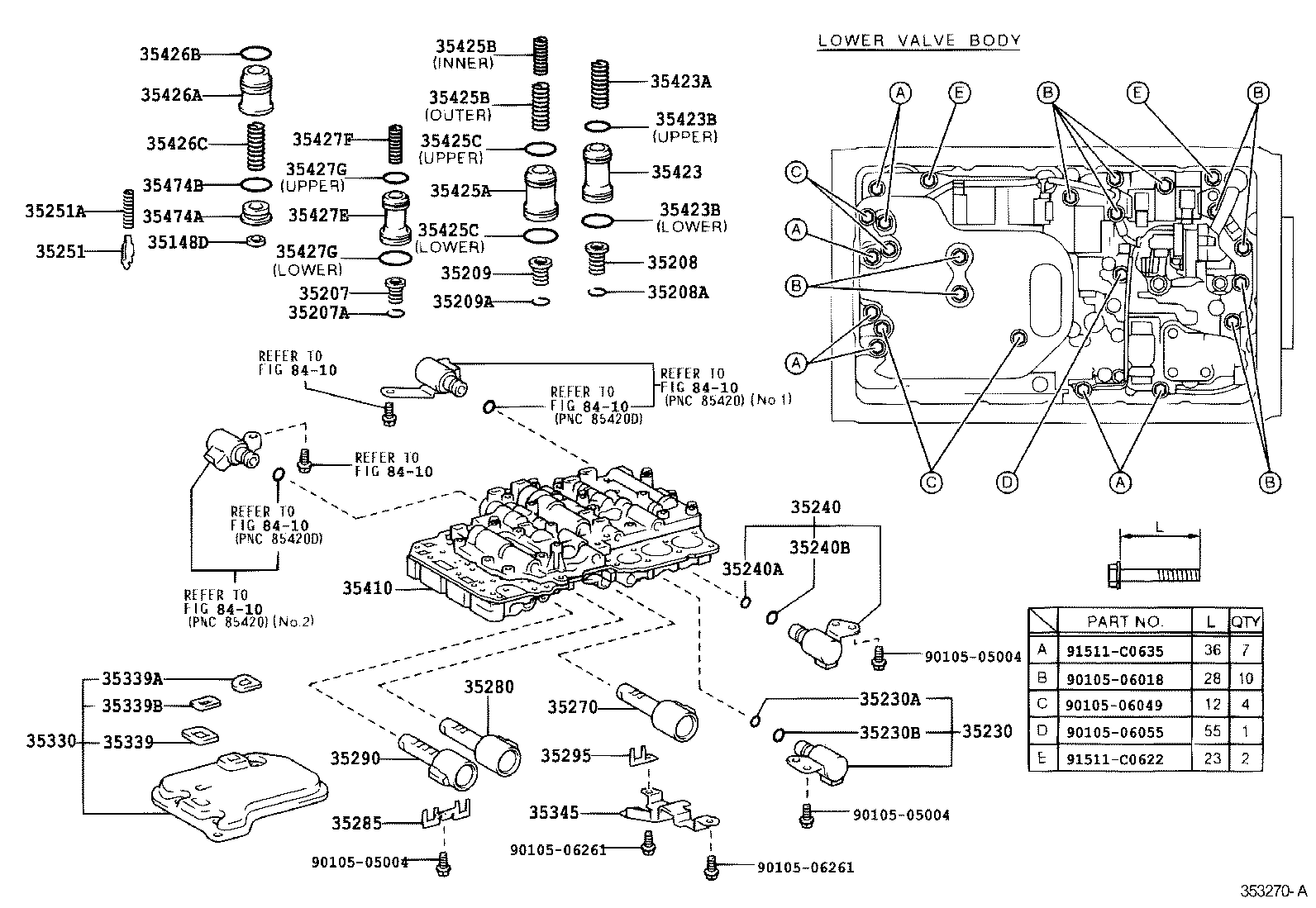

VALVE BODY OIL STRAINER ATM

A650E (0105- )JCE10,SXE10..ATM

 ALTEZZA ALTEZZA GITA |  VALVE BODY OIL STRAINER ATM 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 35230A - RING, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2) 35230B - RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2) 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY 35240A - RING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID) 35240B - RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID) 35251 - BODY, CHECK BALL 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) 35270 - SOLENOID ASSY, SHIFT CONTROL 35280 - SOLENOID ASSY, LOCK UP CONTROL 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35295 - PLATE, SOLENOID LOCK, NO.2 35330 - STRAINER ASSY, VALVE BODY OIL 35339 - GASKET, OIL STRAINER 35339A - GASKET, OIL STRAINER, NO.1 35339B - GASKET, OIL STRAINER, NO.2 35345 - PLATE, OIL GUIDE 35410 - BODY ASSY, TRANSMISSION VALVE 35423 - PISTON, B-2 ACCUMULATOR 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35426A - PISTON, C-0 ACCUMULATOR 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) 35427E - PISTON, B-0 ACCUMULATOR 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35474A - COVER, ACCUMULATOR 35474B - RING, O (FOR ACCUMULATOR COVER) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
