TOYOTA AVENSIS AZT255W-AWPNH / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(0309- )AZT255..WG

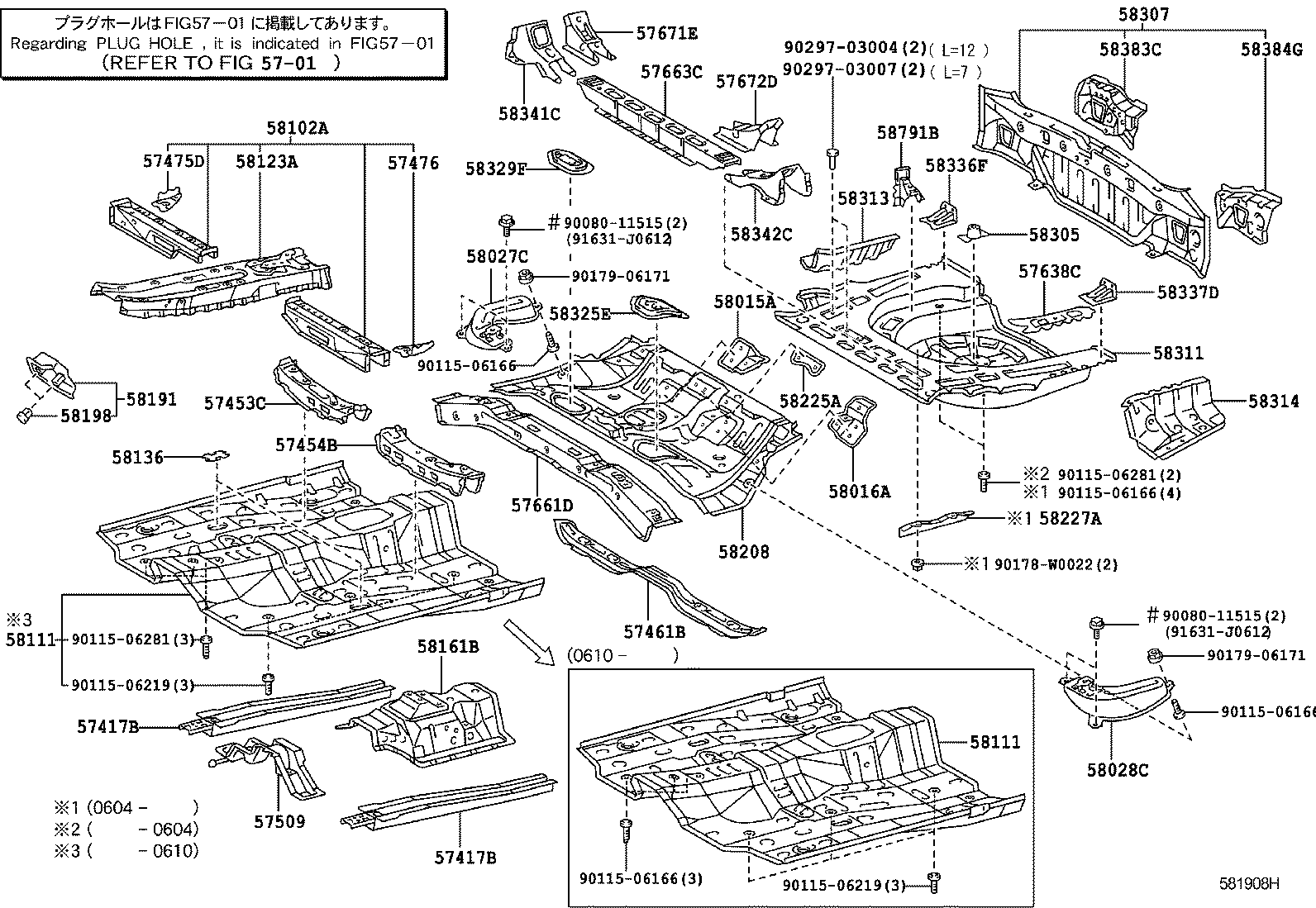

 AVENSIS |  FLOOR PAN LOWER BACK PANEL ** Refer Fig 57417B - REINFORCEMENT, FRONT FLOOR UNDER 57417B - REINFORCEMENT, FRONT FLOOR UNDER 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER 57638C - REINFORCEMENT, REAR FLOOR SIDE MEMBER, CENTER LH 57661D - MEMBER, REAR FLOOR CROSS, FRONT 57663C - MEMBER, REAR FLOOR CROSS, CENTER 57671E - BRACKET, REAR SEAT BACK HINGE MOUNTING, RH 57672D - BLACKET, REAR SEAT BACK HINGE MOUNTING, LH 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58027C - PANEL SUB-ASSY, CENTER FLOOR SIDE, RH 58028C - PANEL SUB-ASSY, CENTER FLOOR SIDE, LH 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR 58111 - PAN, FRONT FLOOR 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 58191 - FOOTREST, FRONT FLOOR 58198 - CLIP, FOOTREST 58208 - PAN, CENTER FLOOR 58225A - BRACKET, CENTER MOUNTING 58227A - PLATE, AIR GUIDE 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58336F - REINFORCEMENT, REAR FLOOR PAN, RH 58337D - REINFORCEMENT, REAR FLOOR PAN, LH 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 58383C - REINFORCEMENT, BODY LOWER BACK PANEL, INNER 58384G - GUSSET, LOWER BACK, UPPER RH 58791B - CARRIER, JACK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
