TOYOTA CAMI J122E-GPZF / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

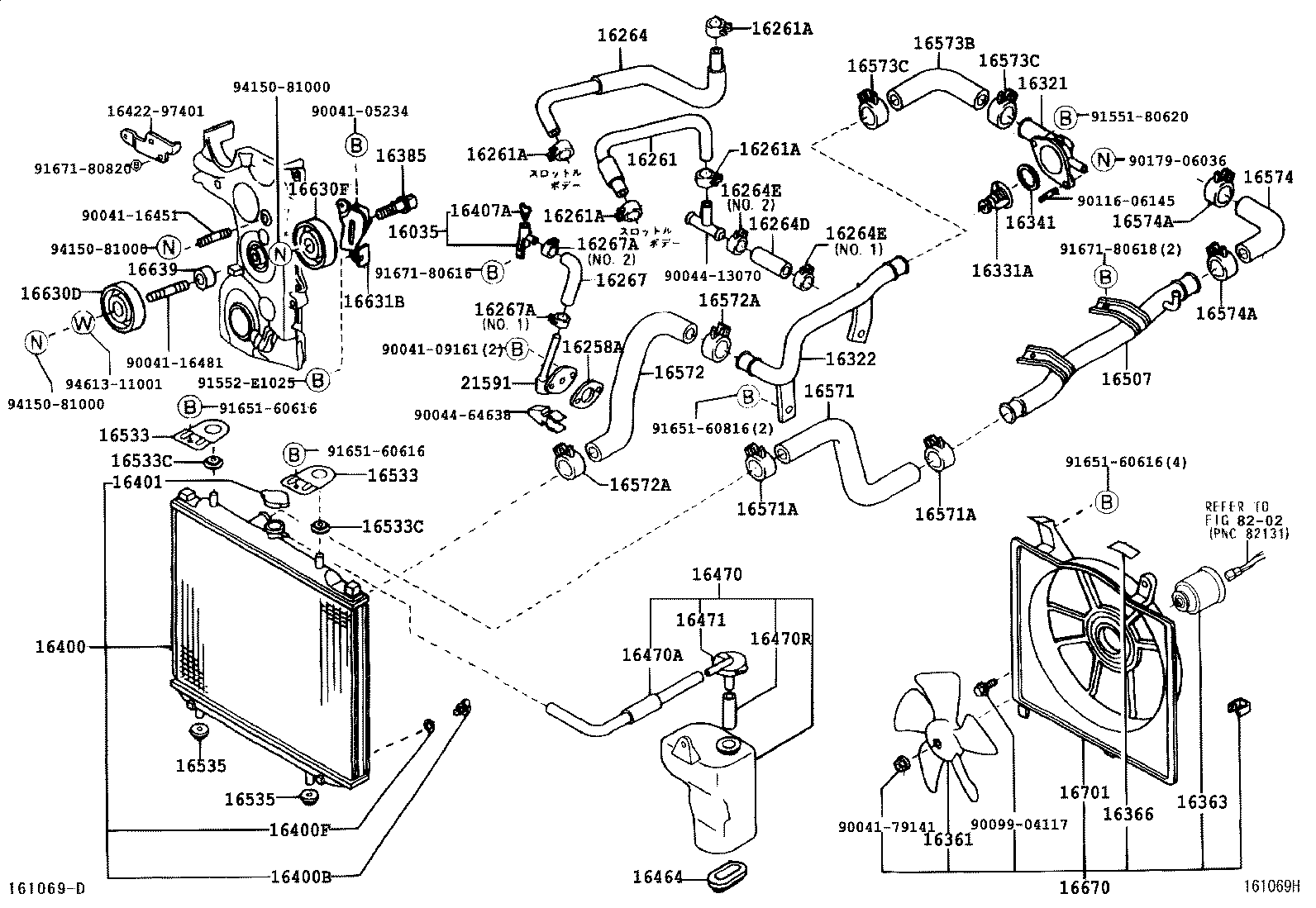

RADIATOR WATER OUTLET

K3VE (0005- )K3VE

CAMI | RADIATOR WATER OUTLET 16035 - JOINT, WATER HOSE 16258A - GASKET(FOR HEATER RETURN) 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264D - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16321 - INLET, WATER 16322 - PIPE, WATER INLET 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16361 - FAN 16363 - MOTOR, COOLING FAN 16366 - LABEL, RADIATOR CAUTION 16385 - SLIDER, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16407A - COCK SUB-ASSY, RADIATOR DRAIN ** Std Part 16464 - BUSH, TANK LOWER 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16507 - PIPE SUB-ASSY, RADIATOR 16533 - SUPPORT, RADIATOR, UPPER 16533 - SUPPORT, RADIATOR, UPPER 16533C - GROMMET(FOR RADIATOR SUPPORT) 16533C - GROMMET(FOR RADIATOR SUPPORT) 16535 - SUPPORT, RADIATOR, LOWER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16574 - HOSE, RADIATOR, NO.4 16574A - CLIP, RADIATOR HOSE, NO.4 16574A - CLIP, RADIATOR HOSE, NO.4 16630D - PULLEY ASSY, IDLER 16630F - PULLEY ASSY, IDLER, NO.2 16631B - BRACKET, IDLER PULLEY 16639 - SPACER, IDLER PULLEY 16670 - MOTER ASSY, FAN W/SHROUD 16701 - SHROUD SUB-ASSY, FAN 21591 - PLATE, WATER BY-PASS ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
