TOYOTA HARRIER MCU35W-AWAGK / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

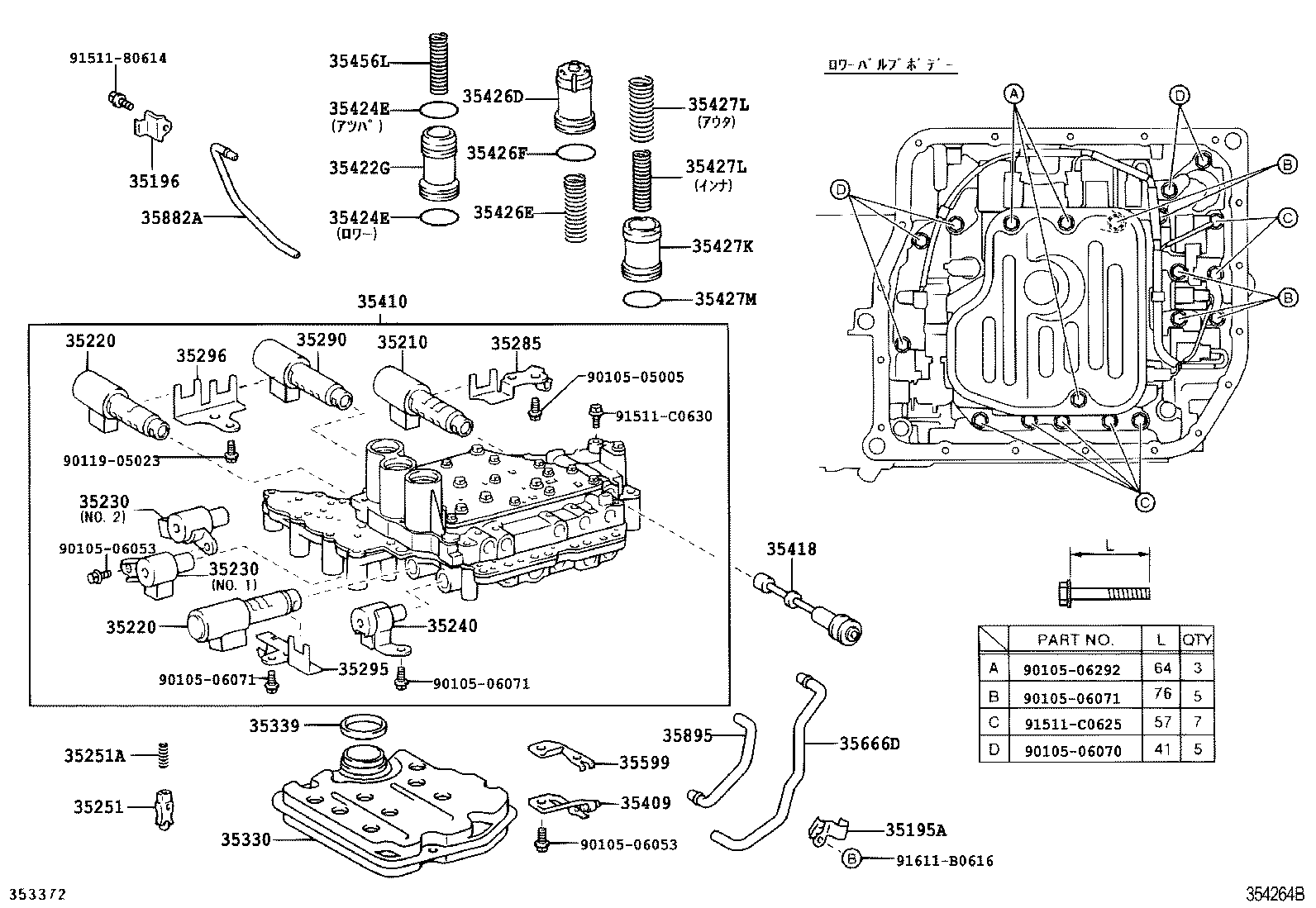

VALVE BODY OIL STRAINER ATM

U151E,U151F ILLUST NO. 1 OF 2(0302- )GSU3#,MCU3#

HARRIER | VALVE BODY OIL STRAINER ATM 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY 35251 - BODY, CHECK BALL 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35295 - PLATE, SOLENOID LOCK, NO.2 35296 - PLATE, SOLENOID LOCK, NO.3 35330 - STRAINER ASSY, VALVE BODY OIL 35339 - GASKET, OIL STRAINER 35409 - SPRING SUB-ASSY, MANUAL DETENT 35410 - BODY ASSY, TRANSMISSION VALVE 35418 - VALVE, MANUAL 35422G - PISTON, REVERSE CLUTCH ACCUMULATOR 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35426D - PISTON, C-3 ACCUMULATOR 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35427K - PISTON, B-3 ACCUMULATOR 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) 35456L - SPRING, COMPRESSION (FOR C-2 CONTROL VALVE) 35599 - COVER, MANUAL DETENT SPRING 35666D - TUBE, BRAKE APPLY 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY 35895 - TUBE, FRONT CLUTCH APPLY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
