TOYOTA RACTIS NCP105-CHPGK / BODY / COWL PANEL WINDSHIELD GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

COWL PANEL WINDSHIELD GLASS

(0509- )

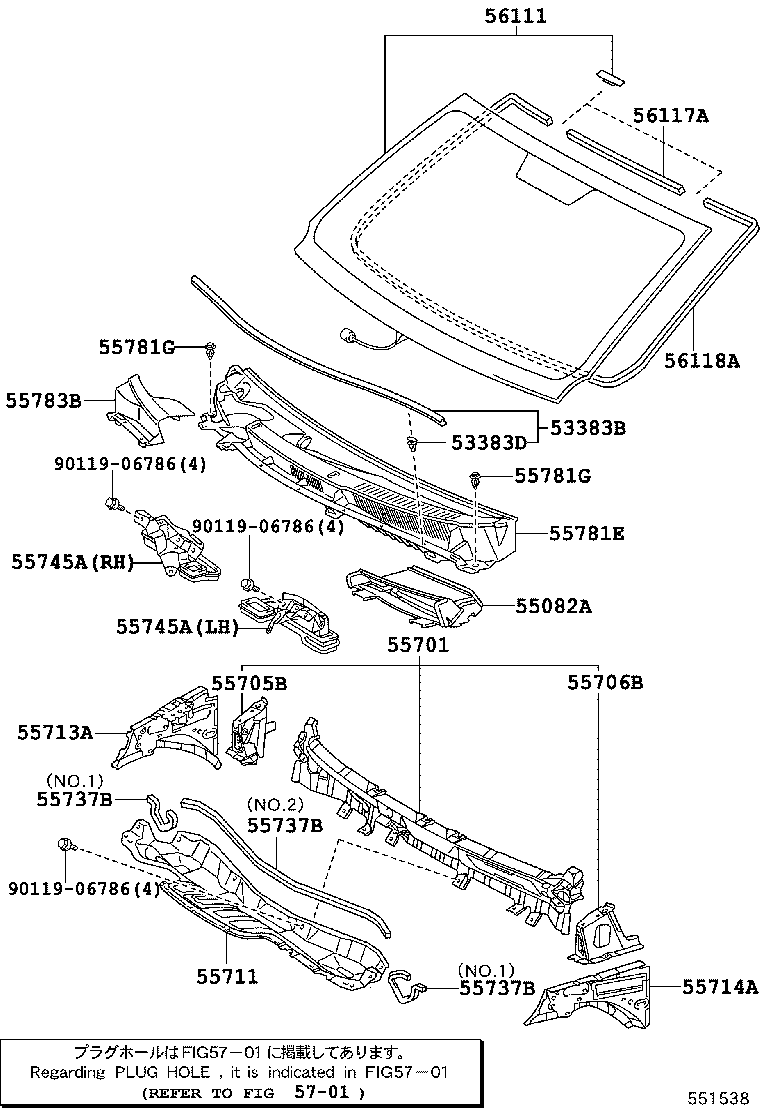

 RACTIS |  COWL PANEL WINDSHIELD GLASS 53383B - SEAL, HOOD TO COWL TOP 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) 55082A - DUCT SUB-ASSY, COWL TO REGISTER, LH 55701 - PANEL SUB-ASSY, COWL 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH 55711 - PANEL, COWL TOP, OUTER 55713A - PANEL, COWL TOP SIDE, RH 55714A - PANEL, COWL TOP SIDE, LH 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 55745A - REINFORCEMENT, COWL TOP, INNER 55745A - REINFORCEMENT, COWL TOP, INNER 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR 55781G - CLIP, COWL TOP VENTILATOR LOUVER 55781G - CLIP, COWL TOP VENTILATOR LOUVER 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 56111 - GLASS, WINDSHIELD 56117A - DAM, WINDOW GLASS ADHESIVE 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
