TOYOTA RACTIS NCP105-CHPGK / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

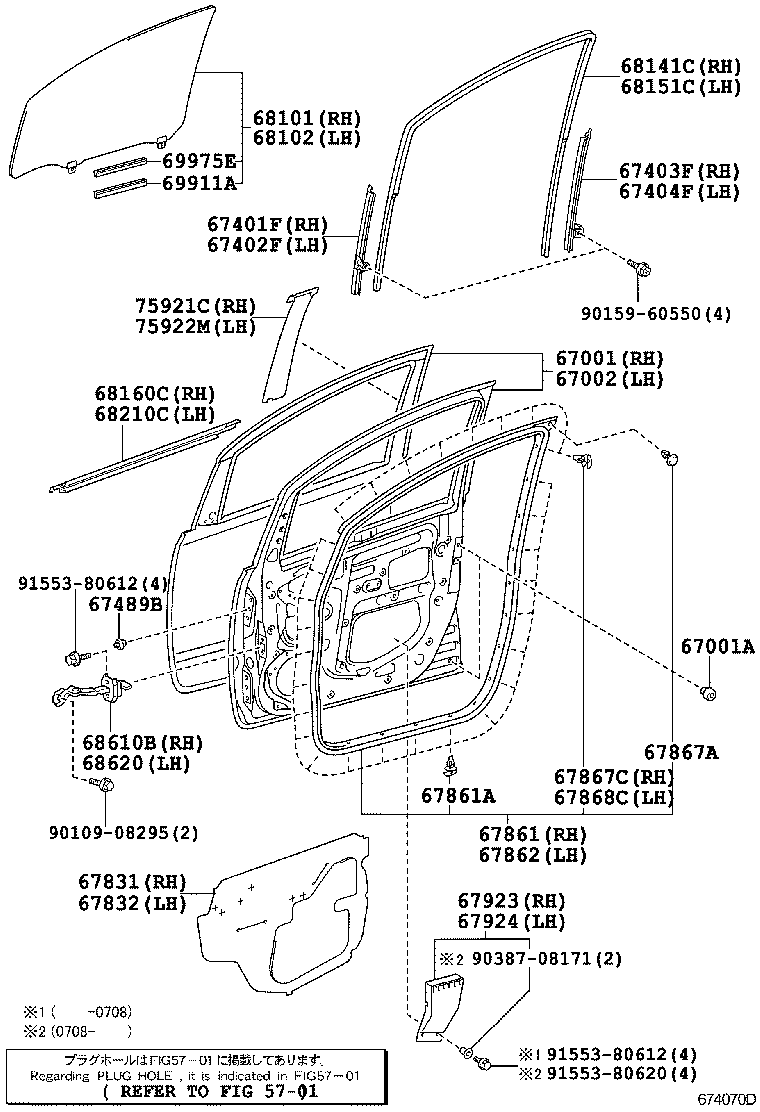

ﾄﾞｱﾊﾟﾈﾙ ILLUST NO. 1 OF 2(0509- )

RACTIS | FRONT DOOR PANEL GLASS ** Refer Fig 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67001A - CUSHION, FRONT DOOR PANEL 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 67489B - PACKING, FRONT DOOR LOWER COVER 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) 67862 - WEATHERSTRIP, FRONT DOOR, LH 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141C - RUN, FRONT DOOR GLASS, RH 68151C - RUN, FRONT DOOR GLASS, LH 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH 68610B - CHECK ASSY, FRONT DOOR, RH 68620 - CHECK ASSY, FRONT DOOR, LH 69911A - CHANNEL, FRONT DOOR GLASS, NO.1 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 75921C - TAPE, BLACK OUT, NO.1 RH 75922M - TAPE, BLACK OUT, NO.1 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
