TOYOTA RACTIS NCP105-CHPGK / POWERTRAIN-CHASSIS / TRANSMISSION CASE OIL PAN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

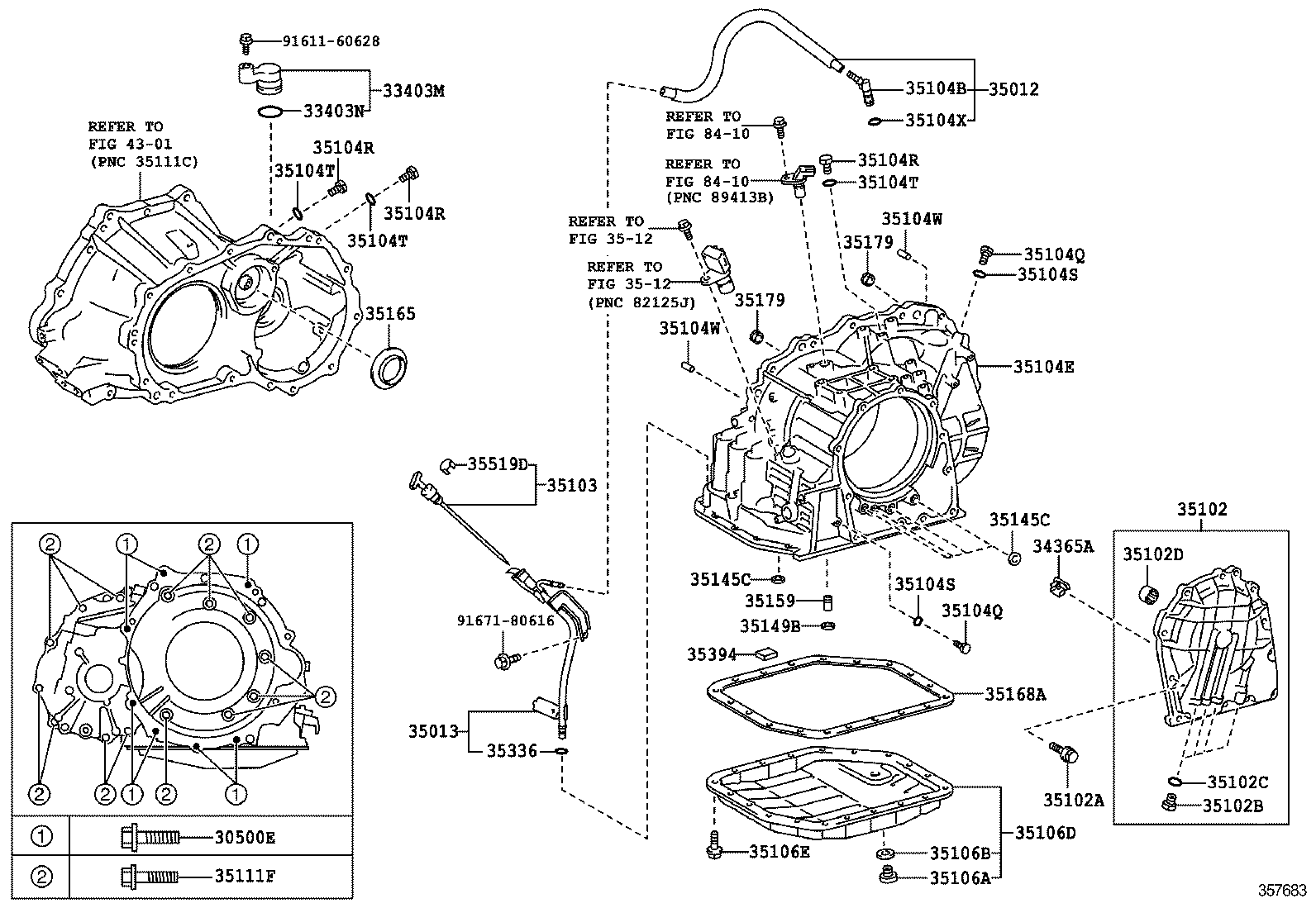

TRANSMISSION CASE OIL PAN ATM

U340F (0509-1003)NCP105

RACTIS | TRANSMISSION CASE OIL PAN ATM 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) 34365A - RETAINER, OUTER RACE 35012 - HOSE SUB-ASSY, TRANSMISSION BREATHER 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER 35102 - COVER SUB-ASSY, TRANSAXLE REAR 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) 35102B - PLUG(FOR TRANSAXLE REAR COVER) 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) 35102D - BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER) 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL 35104B - PLUG, BREATHER, NO.1 (ATM) 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104X - RING, O (FOR BREATHER PLUG) 35106A - PLUG SUB-ASSY, DRAIN (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL 35106E - BOLT (FOR TRANSAXLE OIL PAN) 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) ** Refer Fig ** Refer Fig 35145C - GASKET, TRANSAXLE CASE 35145C - GASKET, TRANSAXLE CASE 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE 35159 - GASKET, BRAKE DRUM 35165 - PLATE, TRANSMISSION CASE, NO.1 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN 35179 - GASKET, OVERDRIVE BRAKE 35179 - GASKET, OVERDRIVE BRAKE 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part
