TOYOTA RACTIS NCP105-CHPGK / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE SHAFT HUB

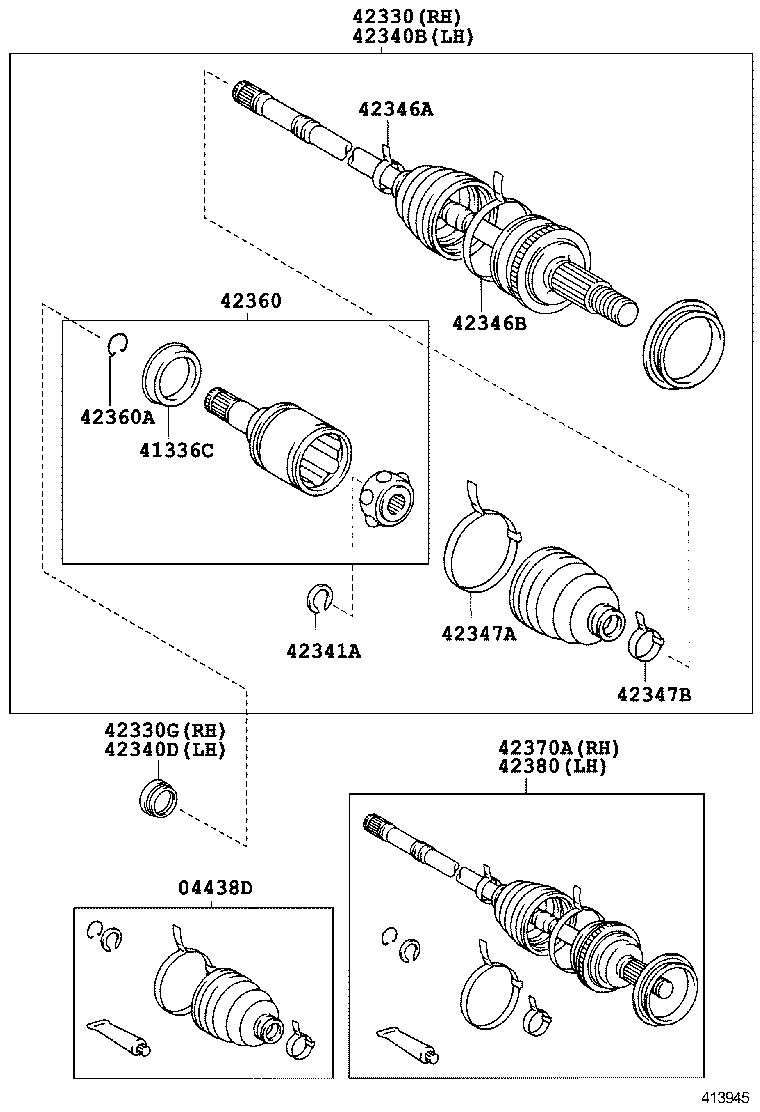

ILLUST NO. 1 OF 2(0509- )NCP105

 RACTIS |  REAR AXLE SHAFT HUB 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT 41336C - COVER, DUST(FOR REAR DRIVE SHAFT) 42330 - SHAFT ASSY, REAR DRIVE, RH 42330G - OIL SEAL, REAR DRIVE SHAFT, RH 42340B - SHAFT ASSY, REAR DRIVE, LH 42340D - OIL SEAL, REAR DRIVE SHAFT, LH 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD 42360A - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT) 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
