TOYOTA RACTIS NCP105-CHPGK / POWERTRAIN-CHASSIS / FRONT DRIVE SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

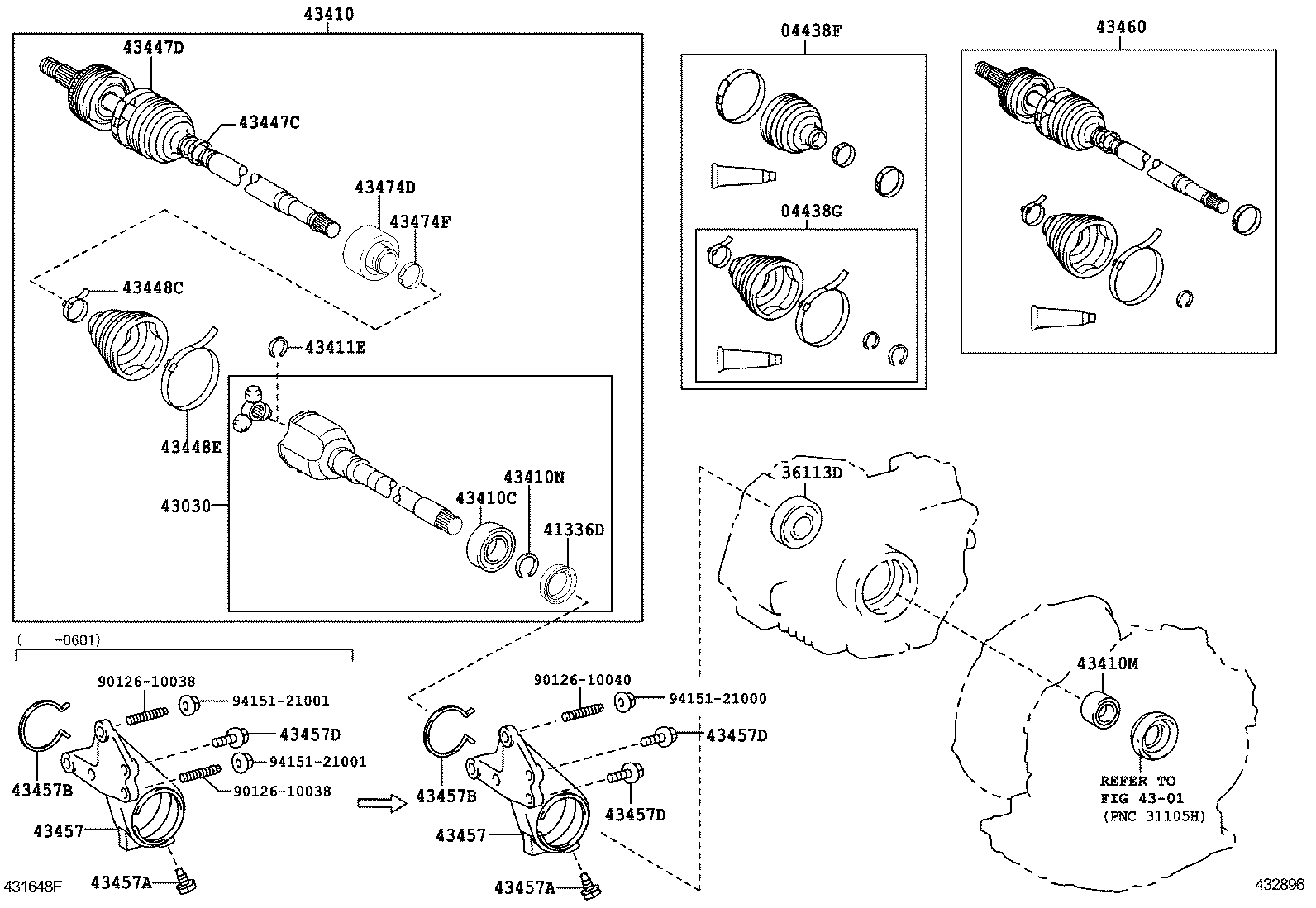

FRONT DRIVE SHAFT

ﾗｲﾄ (0509-0607)NCP105

RACTIS | FRONT DRIVE SHAFT 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH 36113D - SEAL, OIL (FOR TRANSFER CASE RH) 41336D - COVER, FRONT DRIVE SHAFT DUST, RH ** Refer Fig 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH 43410 - SHAFT ASSY, FRONT DRIVE, RH 43410C - BEARING (FOR FRONT DRIVE SHAFT) 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) 43457 - BRACKET, DRIVE SHAFT BEARING 43457 - BRACKET, DRIVE SHAFT BEARING 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH 43474D - DAMPER, FRONT DRIVE SHAFT, RH 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
