TOYOTA LITE TOWNACE KM75-TLSDE3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

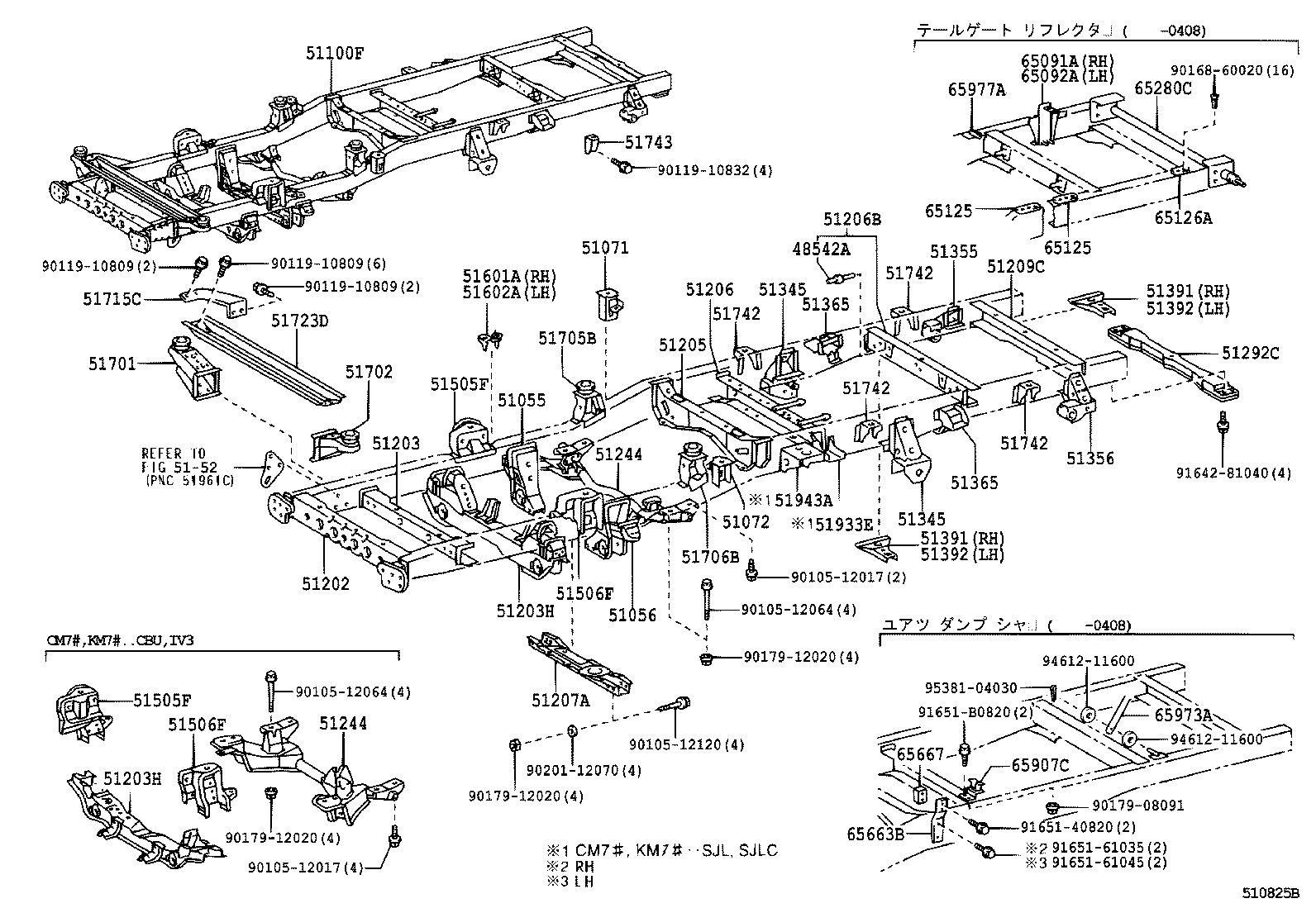

FRAME

(0208- )

LITE TOWNACE | FRAME 48542A - PIN, SHOCK ABSORBER UPPER PIVOT, REAR 51055 - SUPPORT SUB-ASSY, LOWER CONTROL ARM, RH 51056 - SUPPORT SUB-ASSY, LOWER CONTROL ARM, LH 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH 51100F - FRAME SUB-ASSY 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51203H - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION 51203H - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51244 - MEMBER, ENGINE FRONT SUPPORT 51244 - MEMBER, ENGINE FRONT SUPPORT 51292C - CROSSMEMBER, FRAME, REAR LOWER 51345 - BRACKET, REAR SPRING, FRONT 51345 - BRACKET, REAR SPRING, FRONT 51355 - BRACKET, REAR SPRING, REAR RH 51356 - BRACKET, REAR SPRING, REAR LH 51365 - STOPPER, REAR BUMPER 51365 - STOPPER, REAR BUMPER 51391 - GUSSET, FRAME REAR CROSSMEMBER, RH 51391 - GUSSET, FRAME REAR CROSSMEMBER, RH 51392 - GUSSET, FRAME REAR CROSSMEMBER, LH 51392 - GUSSET, FRAME REAR CROSSMEMBER, LH 51505F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, RH 51505F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, RH 51506F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH 51506F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH ** Refer Fig 51601A - STOPPER SUB-ASSY, FRONT SUSPENSION REBOUND, RH 51602A - STOPPER SUB-ASSY, FRONT SUSPENSION REBOUND, LH 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH 51715C - REINFORCEMENT, CAB MOUNTING, NO.1 51723D - BRACKET, CAB FRONT MOUNTING, NO.2 51742 - BRACKET, BODY MOUNTING, NO.2 51742 - BRACKET, BODY MOUNTING, NO.2 51742 - BRACKET, BODY MOUNTING, NO.2 51742 - BRACKET, BODY MOUNTING, NO.2 51743 - BRACKET, BODY MOUNTING, NO.3 51933E - STOPPER, SPARE WHEEL, NO.1 51943A - BRACKET, SPARE WHEEL CARRIER 65091A - BASE SUB-ASSY, DUMP ACTUATOR, RH 65092A - BASE SUB-ASSY, DUMP ACTUATOR, LH 65125 - SHIM, MAIN SILL, NO.1 65125 - SHIM, MAIN SILL, NO.1 65126A - SHIM, MAIN SILL, LOWER NO.2 65280C - SHAFT ASSY, VESSEL HINGE 65663B - GUIDE, VESSEL 65667 - LINER, VESSEL GUIDE 65907C - CLAMP SUB-ASSY, VESSEL STAND BAR 65973A - BAR, VESSEL STAND 65977A - BRACKET, VESSEL STAND ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
