TOYOTA CROWN COMFORT SED GBS12-CEPFK / ELECTRICAL / ELECTRONIC FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ELECTRONIC FUEL INJECTION SYSTEM

(0210- )GBS12

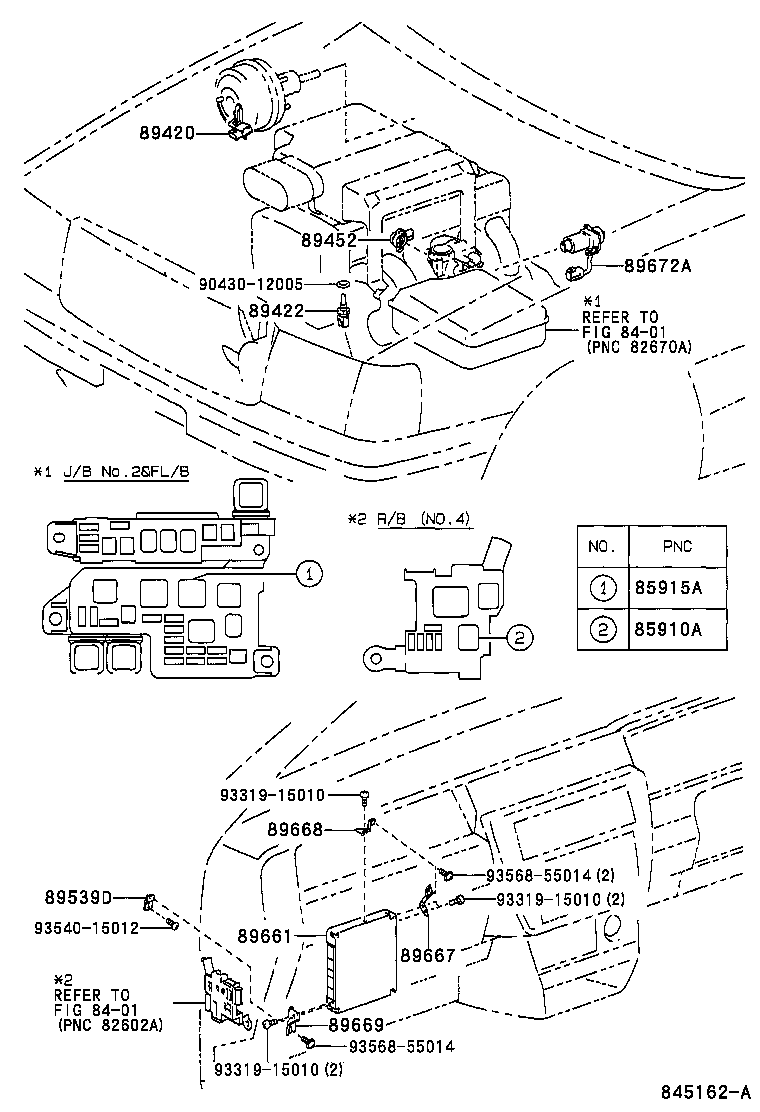

CROWN COMFORT SED | ELECTRONIC FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) 85915A - RELAY, MAIN 89420 - SENSOR ASSY, VACUUM 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) 89539D - BRACKET, COMPUTER 89661 - COMPUTER, ENGINE CONTROL 89667 - BRACKET, ENGINE CONTROL COMPUTER 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 89672A - MOTOR, THROTTLE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
