TOYOTA ESTIMA GSR50W-GFTQK / ELECTRICAL / HEADLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEADLAMP

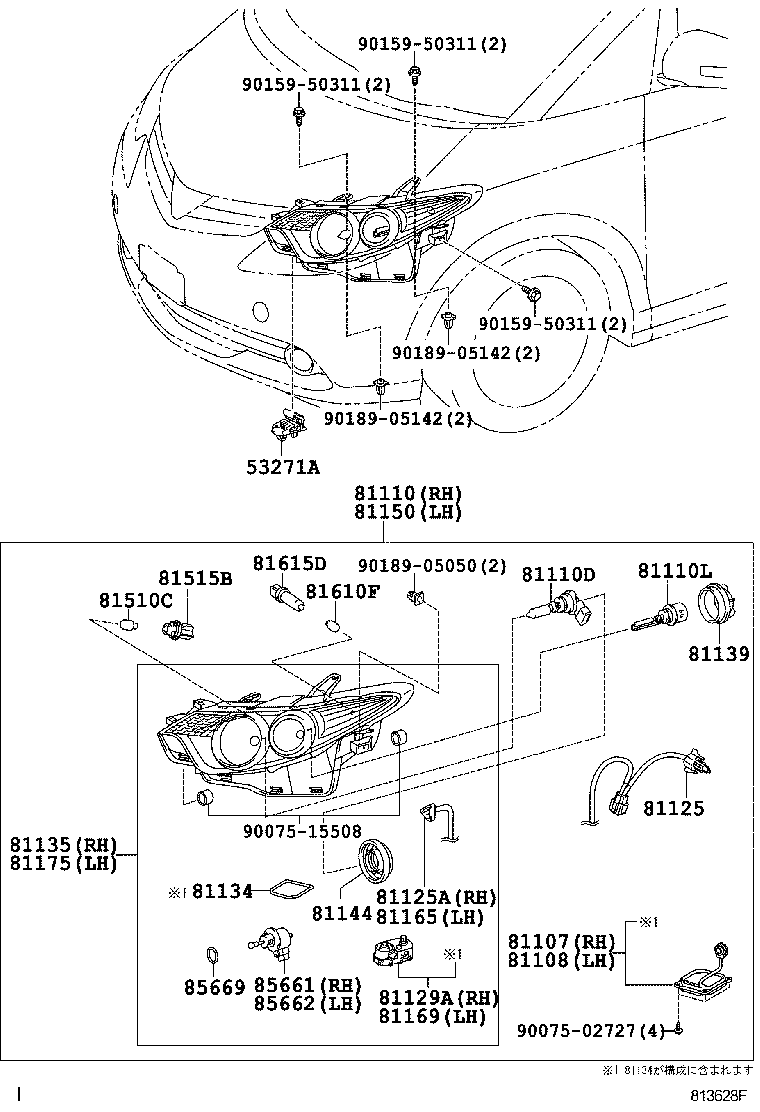

ディスチャージ ヘッドランプ & W(AFS) ILLUST NO. 1 OF 2(0601-0812)AERAS,G

 ESTIMA |  HEADLAMP 53271A - BRACKET, HEADLAMP MOUNTING 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH 81110 - HEADLAMP ASSY, RH 81110D - BULB(FOR HEADLAMP, NO.2) 81110L - BULB, DISCHARGE HEADLAMP 81125 - CORD, HEADLAMP 81125A - CORD, HEADLAMP, RH 81129A - REFLECTOR, HEADLAMP, RH 81134 - GASKET, HEADLAMP 81135 - UNIT ASSY, HEADLAMP, RH 81139 - COVER, HEADLAMP SOCKET 81144 - COVER, HEADLAMP, NO.1 81150 - HEADLAMP ASSY, LH 81165 - CORD, HEADLAMP, LH 81169 - REFLECTOR, HEADLAMP, LH 81175 - UNIT ASSY, HEADLAMP, LH 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) 81515B - SOCKET, FRONT TURN SIGNAL LAMP 81610F - BULB(FOR CLEARANCE LAMP) 81615D - SOCKET, CLEARANCE LAMP 85661 - MOTOR, HEADLAMP LEVELING, RH 85662 - MOTOR, HEADLAMP LEVELING, LH 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
