TOYOTA HARRIER HV MHU38W-AWXGK / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

STEERING COLUMN SHAFT

(0503-1011)

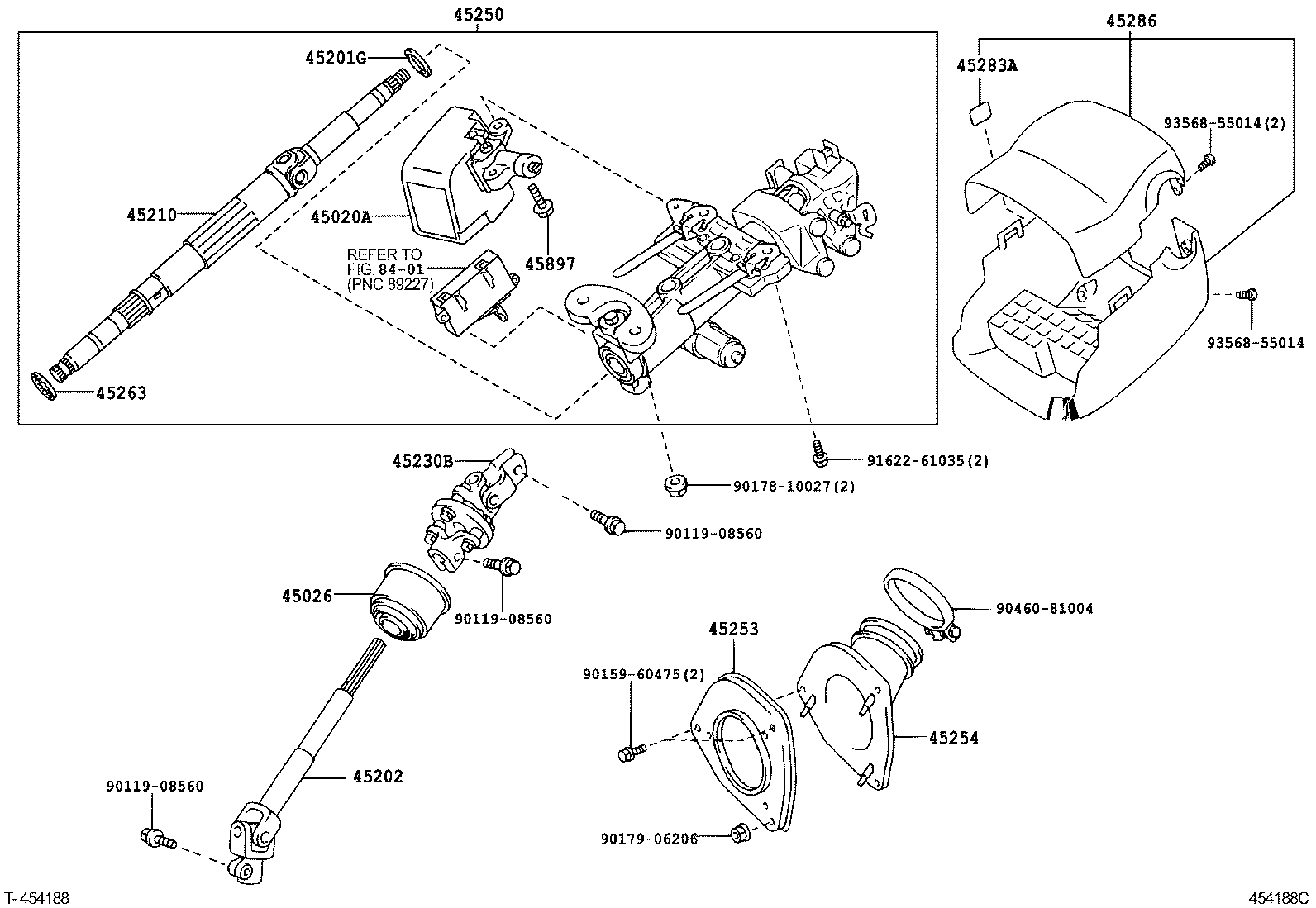

HARRIER HV | STEERING COLUMN SHAFT 45020A - ACTUATOR ASSY, STEERING LOCK 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE 45210 - SHAFT ASSY, STEERING MAIN 45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL 45250 - COLUMN ASSY, STEERING 45253 - COVER, STEERING COLUMN HOLE 45254 - SHIELD, STEERING COLUMN HOLE 45263 - RING, STEERING COLUMN, NO.1 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION 45286 - COVER, STEERING COLUMN 45897 - BOLT, STEERING LOCK SET ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
