TOYOTA HARRIER HV MHU38W-AWXGK / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

(0503- )

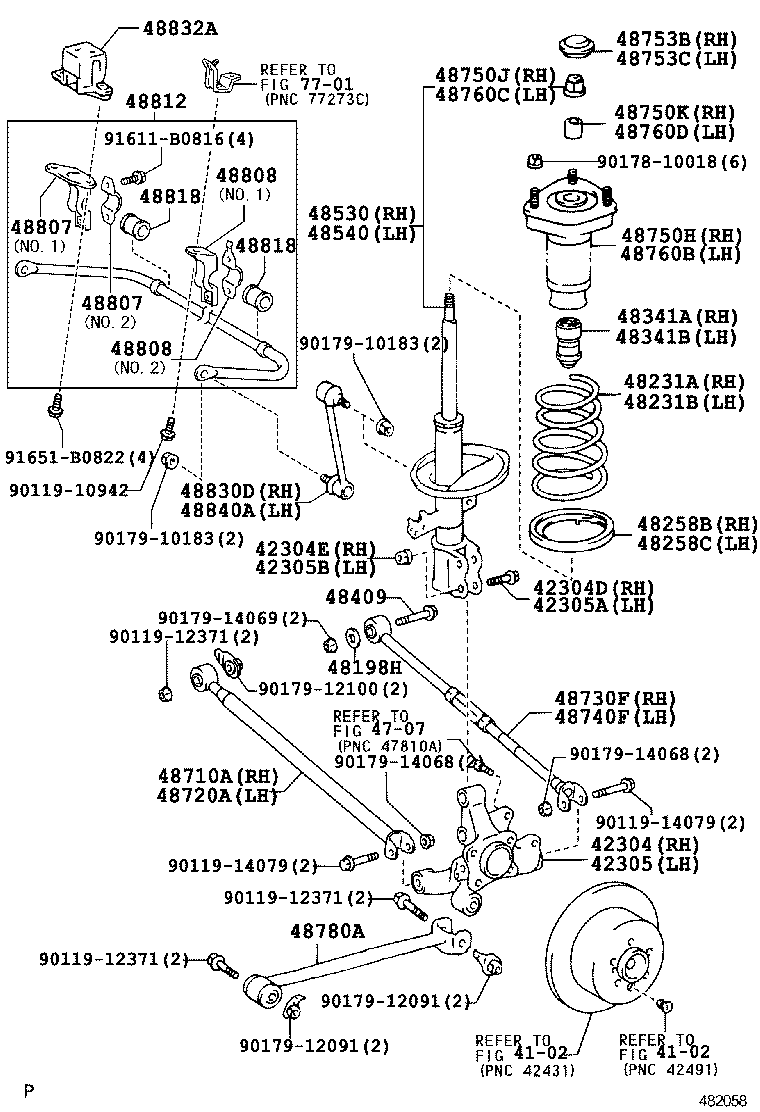

HARRIER HV | REAR SPRING SHOCK ABSORBER ** Refer Fig ** Refer Fig 42304 - CARRIER SUB-ASSY, REAR AXLE, RH 42304D - BOLT (FOR REAR AXLE CARRIER RH) 42304E - NUT (FOR REAR AXLE CARRIER RH) 42305 - CARRIER SUB-ASSY, REAR AXLE, LH 42305A - BOLT (FOR REAR AXLE CARRIER LH) 42305B - NUT (FOR REAR AXLE CARRIER LH) ** Refer Fig 48198H - CAM, CAMBER ADJUST, NO.2 48231A - SPRING, COIL, REAR RH 48231B - SPRING, COIL, REAR LH 48258B - INSULATOR, REAR COIL SPRING, LOWER RH 48258C - INSULATOR, REAR COIL SPRING, LOWER LH 48341A - BUMPER, REAR SPRING, NO.1 RH 48341B - BUMPER, REAR SPRING, NO.1 LH 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST 48530 - ABSORBER ASSY, SHOCK, REAR RH 48540 - ABSORBER ASSY, SHOCK, REAR LH 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH 48750H - SUPPORT ASSY, REAR SUSPENSION, RH 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH 48760B - SUPPORT ASSY REAR SUSPENSION, LH 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) 48780A - ROD ASSY, STRUT, REAR 48807 - BRACKET, REAR STABILIZER BAR, RH 48807 - BRACKET, REAR STABILIZER BAR, RH 48808 - BRACKET, REAR STABILIZER BAR, LH 48808 - BRACKET, REAR STABILIZER BAR, LH 48812 - BAR, STABILIZER, REAR 48818 - BUSH, STABILIZER, REAR 48818 - BUSH, STABILIZER, REAR 48830D - LINK ASSY, REAR STABILIZER, RH 48832A - BRACKET, REAR STABILIZER BAR, NO.1 48840A - LINK ASSY, REAR STABILIZER, LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
