TOYOTA LAND CRUISER PRADO GRJ121W-GKAGK / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(0508- )GRJ12#

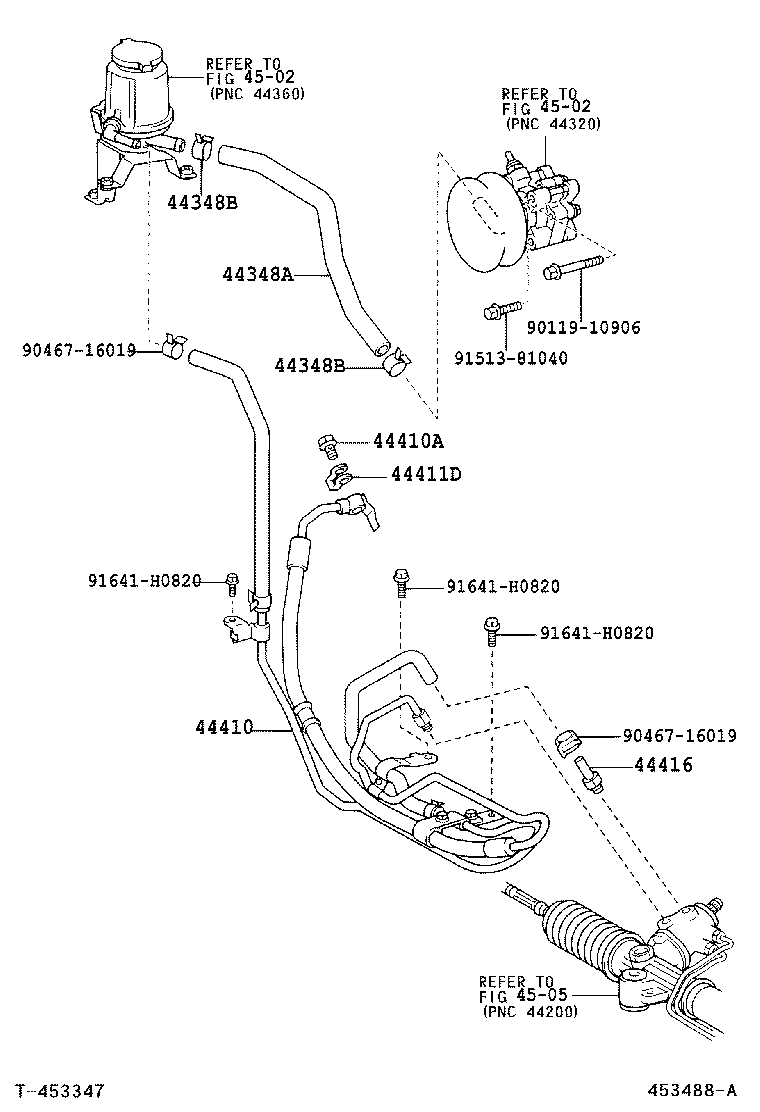

LAND CRUISER PRADO | POWER STEERING TUBE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
