TOYOTA LAND CRUISER PRADO GRJ121W-GKAGK / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

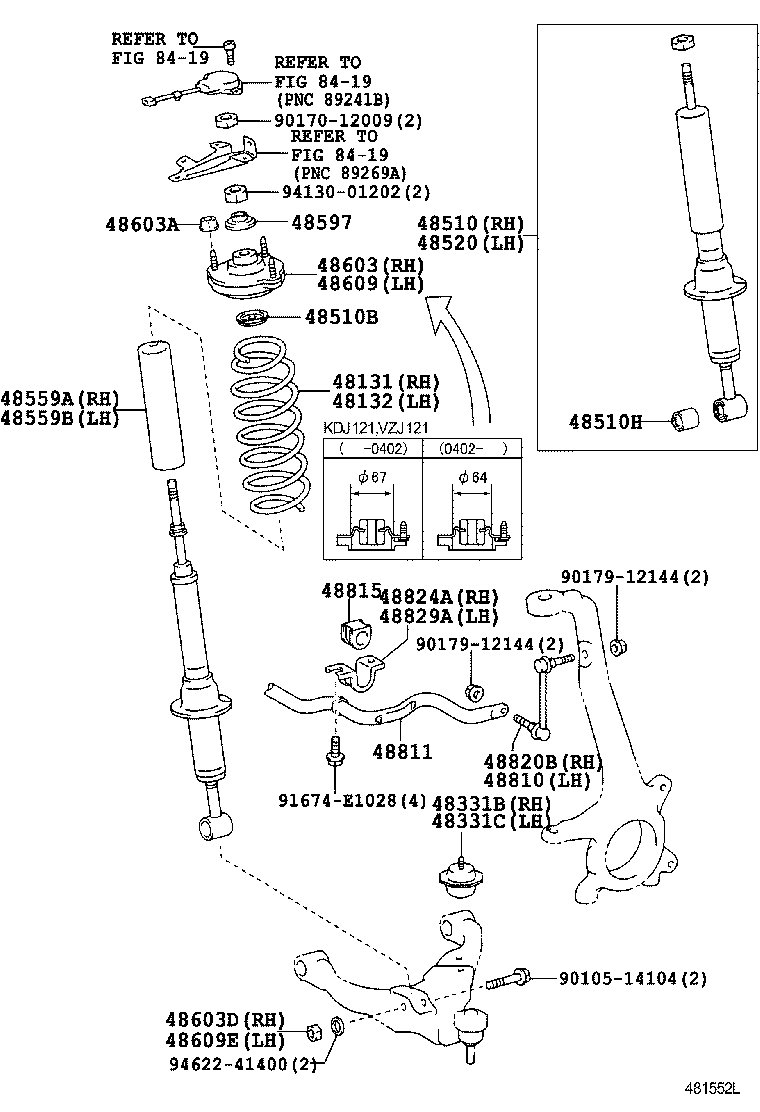

FRONT SPRING SHOCK ABSORBER

(0209- )GRJ121,KDJ121,VZJ121

LAND CRUISER PRADO | FRONT SPRING SHOCK ABSORBER 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48331B - BUMPER, FRONT SPRING, RH 48331C - BUMPER, FRONT SPRING, LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510H - BUSH(FOR FRONT SHOCK ABSORBER) 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 48597 - RETAINER, SHOCK ABSORBER CUSHION 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
