TOYOTA AURIS NZE154H-BHXNK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

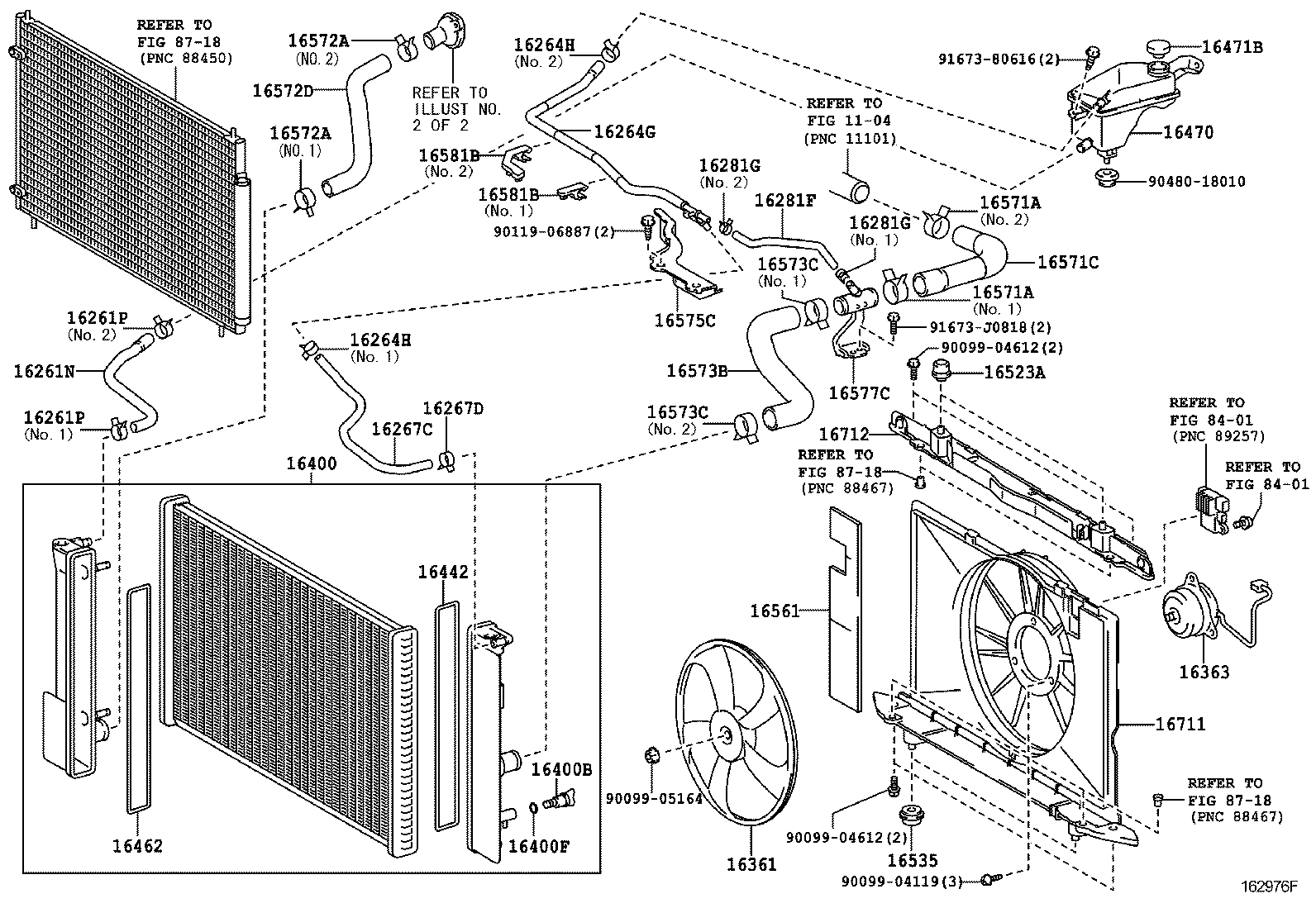

ILLUST NO. 1 OF 2(0610- )1NZFE

AURIS | RADIATOR WATER OUTLET ** Refer Fig 16261N - HOSE, WATER BY-PASS, NO.2 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264G - HOSE, WATER BY-PASS, NO.3 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) 16267C - HOSE, WATER BY-PASS, NO.4 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) 16281F - HOSE, WATER BY-PASS, NO.5 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) 16361 - FAN 16363 - MOTOR, COOLING FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16442 - RING, O(FOR RADIATOR UPPER TANK) 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16471B - CAP, RESERVE TANK 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571C - HOSE, RADIATOR, NO.1 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572D - HOSE, RADIATOR, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16575C - BRACKET, WATER HOSE CLAMP, NO.1 16577C - PIPE, RADIATOR 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
