TOYOTA MARK X GRX121-AETZH / POWERTRAIN-CHASSIS / TRANSMISSION CASE OIL PAN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

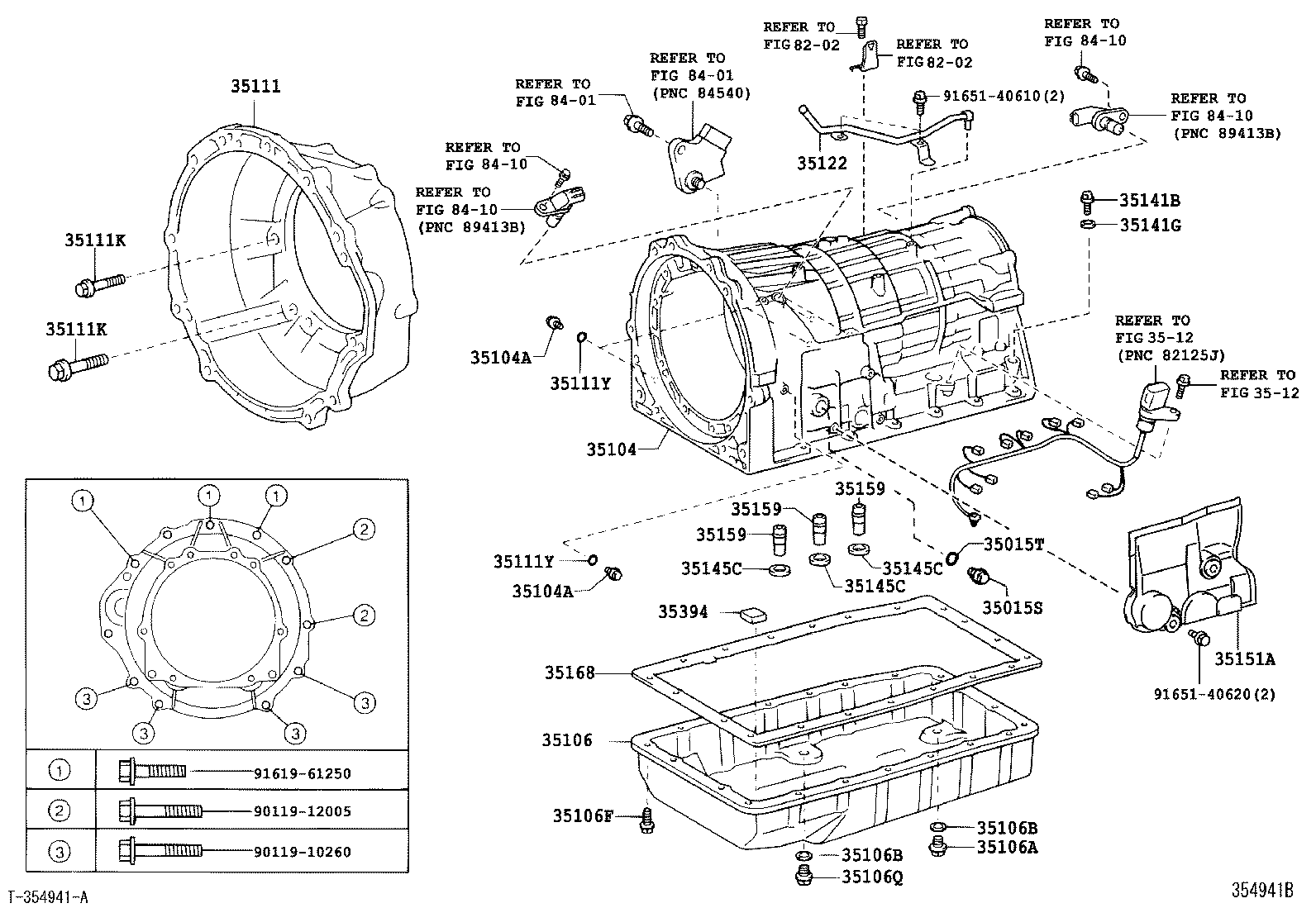

TRANSMISSION CASE OIL PAN ATM

A960E (0411- )GRX120,121

MARK X | TRANSMISSION CASE OIL PAN ATM 35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) 35015T - RING, O(FOR TRANSMISSION CASE ADAPTER) 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION 35104A - PLUG, AUTOMATIC TRANSMISSION CASE 35104A - PLUG, AUTOMATIC TRANSMISSION CASE 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL 35106A - PLUG SUB-ASSY, DRAIN (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) 35111 - HOUSING, AUTOMATIC TRANSMISSION 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) ** Refer Fig ** Refer Fig 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) 35145C - GASKET, TRANSAXLE CASE 35145C - GASKET, TRANSAXLE CASE 35145C - GASKET, TRANSAXLE CASE 35151A - COVER, TRANSAXLE CASE, UPPER 35159 - GASKET, BRAKE DRUM 35159 - GASKET, BRAKE DRUM 35159 - GASKET, BRAKE DRUM 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
