TOYOTA RACTIS NCP105-CHPNK / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

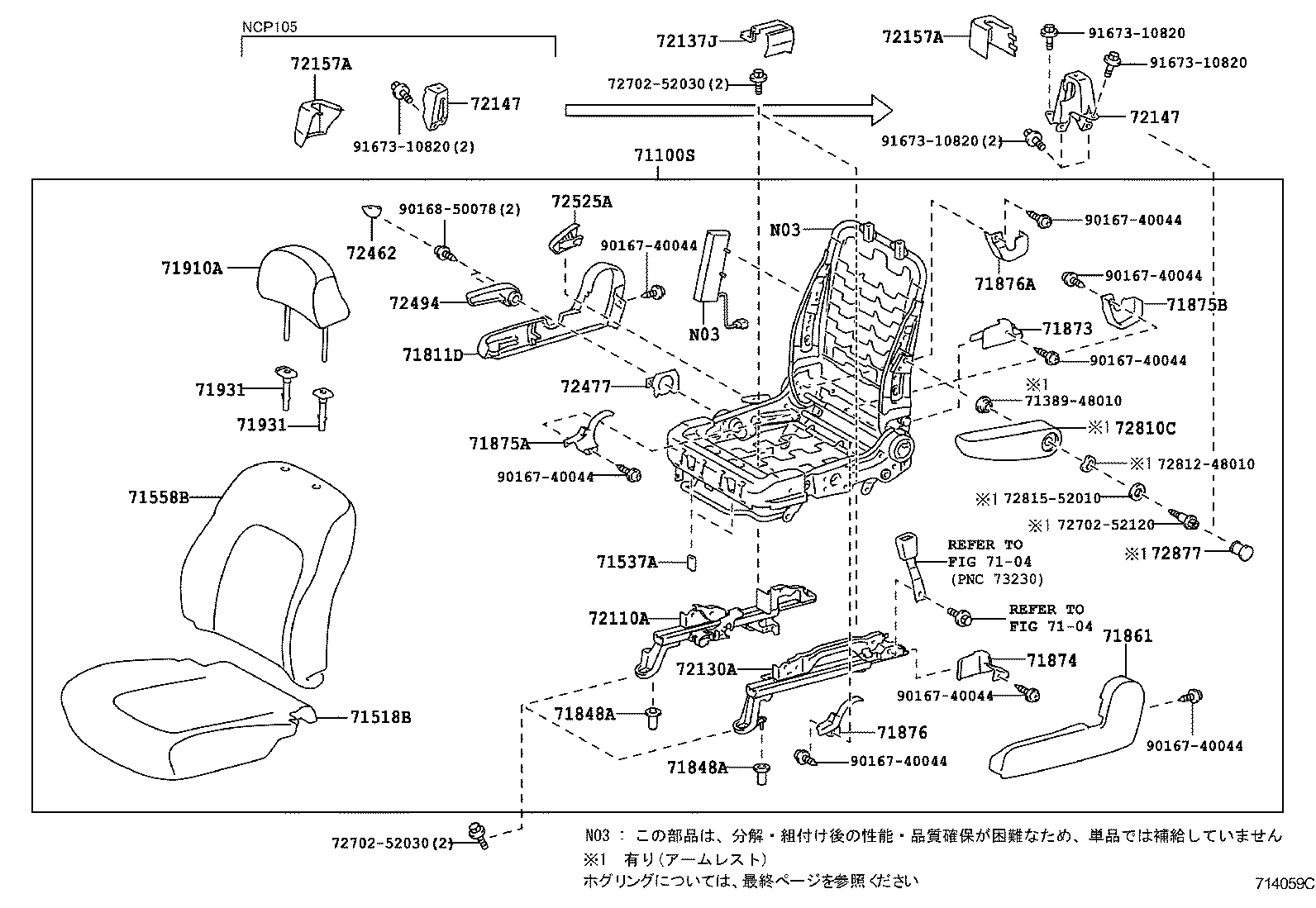

FRONT SEAT SEAT TRACK

ｳﾝﾃﾝｾｷ-ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞｯｸﾞ) (0509- )

RACTIS | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71100S - SEAT ASSY, FRONT RH ** Std Part 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH 71537A - PROTECTOR, FRONT SEAT CUSHION 71558B - PAD, FRONT SEAT BACK W/COVER, RH 71811D - SHIELD, FRONT SEAT CUSHION, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72110A - TRACK ASSY, FRONT SEAT, OUTER RH 72130A - TRACK ASSY, FRONT SEAT, INNER RH 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72462 - COVER, VERTICAL ADJUSTER RH 72477 - SPACER, VERTICAL ADJUSTER 72494 - HANDLE, VERTICAL ADJUSTING, RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH ** Std Part ** Std Part ** Std Part 72810C - ARMREST ASSY, FRONT SEAT, CENTER ** Std Part ** Std Part 72877 - COVER, SEAT ARMREST, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
