TOYOTA RACTIS NCP105-CHPNK / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

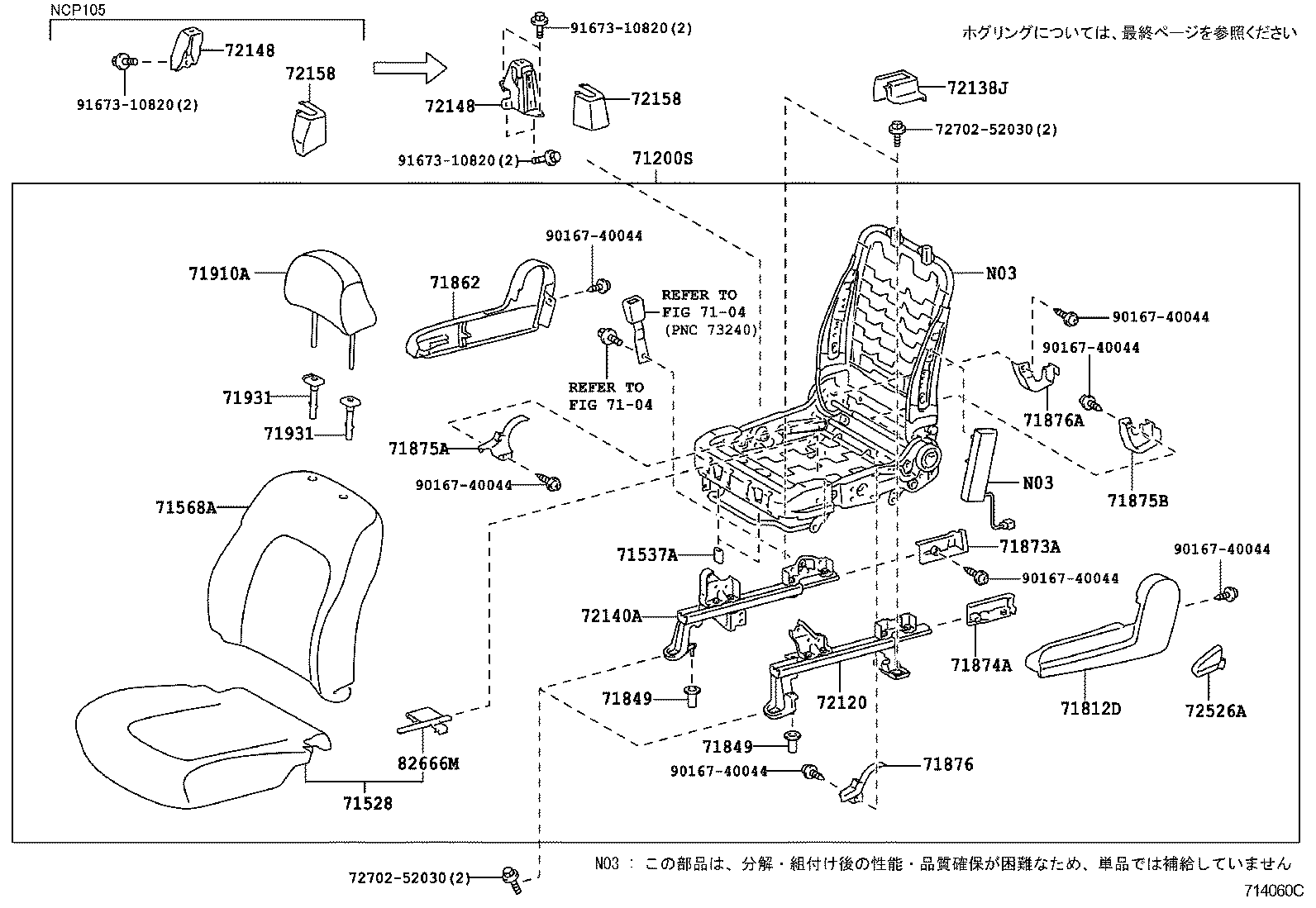

FRONT SEAT SEAT TRACK

ｼﾞｮｼｭｾｷ-ｱﾘ(SRS ｻｲﾄﾞ ｴｱﾊﾞｯｸﾞ) (0509- )

RACTIS | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71200S - SEAT ASSY, FRONT LH 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH 71537A - PROTECTOR, FRONT SEAT CUSHION 71568A - PAD, FRONT SEAT BACK W/COVER, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72120 - TRACK ASSY, FRONT SEAT, OUTER LH 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER 72140A - TRACK ASSY, FRONT SEAT,INNER LH 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Std Part ** Std Part 82666M - HOLDER, CONECTOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
