TOYOTA LAND CRUISER 200 202 URJ202W-GNTVK / POWERTRAIN-CHASSIS / HEIGHT CONTROL AUTO LEVELER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEIGHT CONTROL AUTO LEVELER

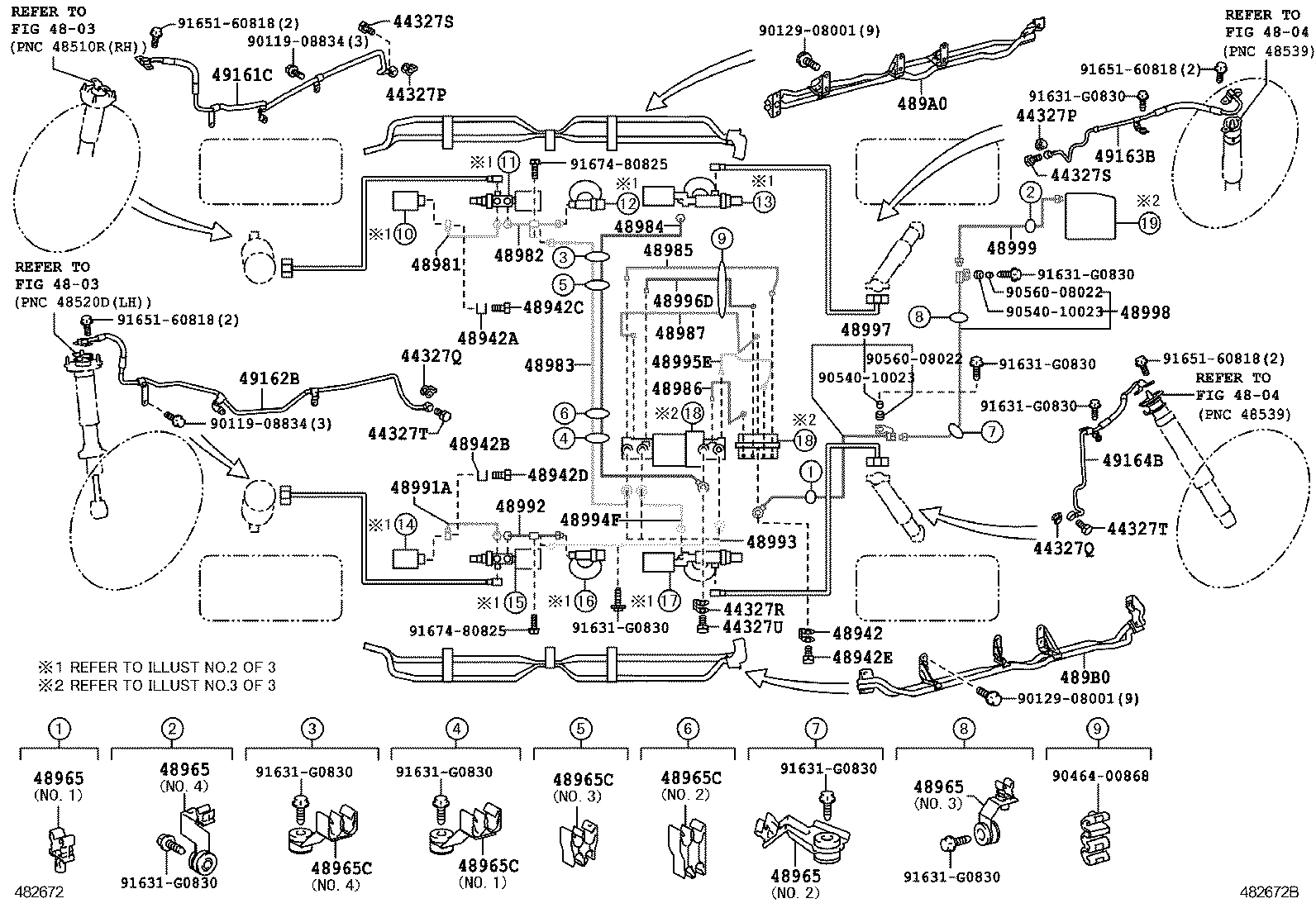

ILLUST NO. 1 OF 3(0905- )ZX

 LAND CRUISER 200 202 |  HEIGHT CONTROL AUTO LEVELER 44327P - GASKET, PRESSURE PORT, NO.1 RH 44327P - GASKET, PRESSURE PORT, NO.1 RH 44327Q - GASKET, PRESSURE PORT, NO.1 LH 44327Q - GASKET, PRESSURE PORT, NO.1 LH 44327R - GASKET, PRESSURE PORT, NO.2 44327S - BOLT, UNION, NO.3 RH 44327S - BOLT, UNION, NO.3 RH 44327T - BOLT, UNION, NO.3 LH 44327T - BOLT, UNION, NO.3 LH 44327U - BOLT, UNION, NO.4 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 48942 - GASKET, HEIGHT CONTROL UNION 48942A - GASKET, HEIGHT CONTROL UNION RH 48942B - GASKET, HEIGHT CONTROL UNION LH 48942C - BOLT, UNION, NO.1 RH 48942D - BOLT, UNION, NO.1 LH 48942E - BOLT, UNION, NO.2 48965 - CLAMP, HEIGHT CONTROL TUBE 48965 - CLAMP, HEIGHT CONTROL TUBE 48965 - CLAMP, HEIGHT CONTROL TUBE 48965 - CLAMP, HEIGHT CONTROL TUBE 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 48981 - TUBE, HEIGHT CONTROL, NO.1 48982 - TUBE, HEIGHT CONTROL, NO.2 48983 - TUBE, HEIGHT CONTROL, NO.3 48984 - TUBE, HEIGHT CONTROL, NO.4 48985 - TUBE, HEIGHT CONTROL, NO.5 48986 - TUBE, HEIGHT CONTROL, NO.6 48987 - TUBE, HEIGHT CONTROL, NO.7 48991A - TUBE, HEIGHT CONTROL, LH NO.1 48992 - TUBE, HEIGHT CONTROL, LH NO.2 48993 - TUBE, HEIGHT CONTROL, LH NO.3 48994F - TUBE, HEIGHT CONTROL, LH NO.4 48995E - TUBE, HEIGHT CONTROL, LH NO.5 48996D - TUBE, HEIGHT CONTROL, LH NO.6 48997 - TUBE, HEIGHT CONTROL, REAR NO.4 48998 - TUBE, HEIGHT CONTROL, REAR NO.5 48999 - TUBE, HEIGHT CONTROL, REAR NO.6 489A0 - PROTECTOR ASSY, HEIGHT CONTROL UNIT, RH 489B0 - PROTECTOR ASSY, HEIGHT CONTROL UNIT, LH 49161C - HOSE, SUSPENSION CONTROL PRESSURE, NO.1 49162B - HOSE, SUSPENSION CONTROL PRESSURE, NO.2 49163B - HOSE, SUSPENSION CONTROL PRESSURE, NO.3 49164B - HOSE, SUSPENSION CONTROL PRESSURE, NO.4  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
