TOYOTA PRIUS PLUG IN LEASE ZVW35-BHXEB / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

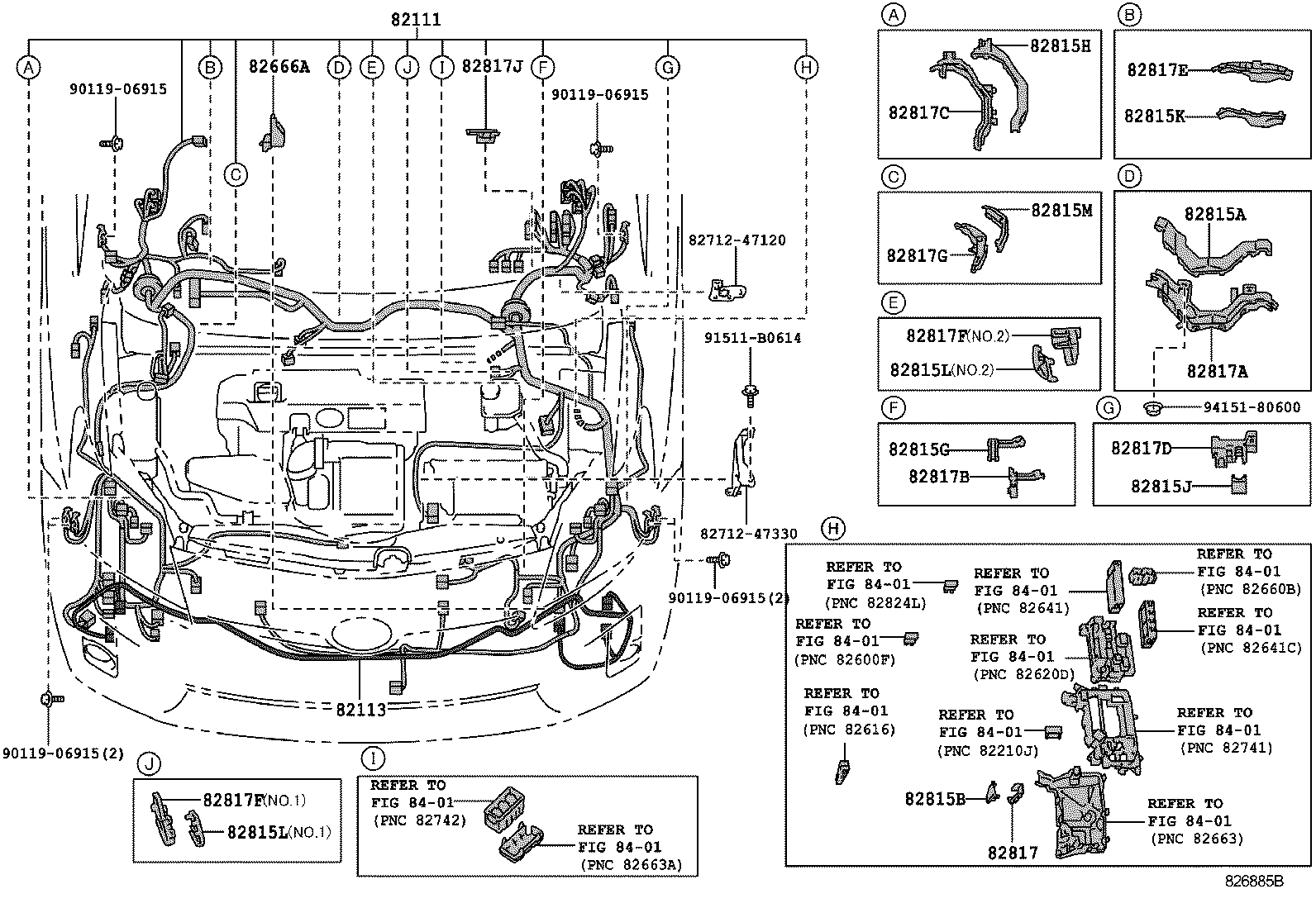

ｴﾝｼﾞﾝ ﾙｰﾑ ILLUST NO. 1 OF10(0912- )

PRIUS PLUG IN LEASE | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82113 - WIRE, ENGINE ROOM, NO.3 82666A - HOLDER, CONNECTOR NO.2 ** Std Part ** Std Part 82815A - COVER, WIRING HARNESS PROTECTOR 82815B - COVER, WIRING HARNESS PROTECTOR 82815G - COVER, WIRING HARNESS PROTECTOR 82815H - COVER, WIRING HARNESS PROTECTOR 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817J - PROTECTOR, WIRING HARNESS, NO.9 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
