TOYOTA PRIUS ZVW30-AHXEB / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

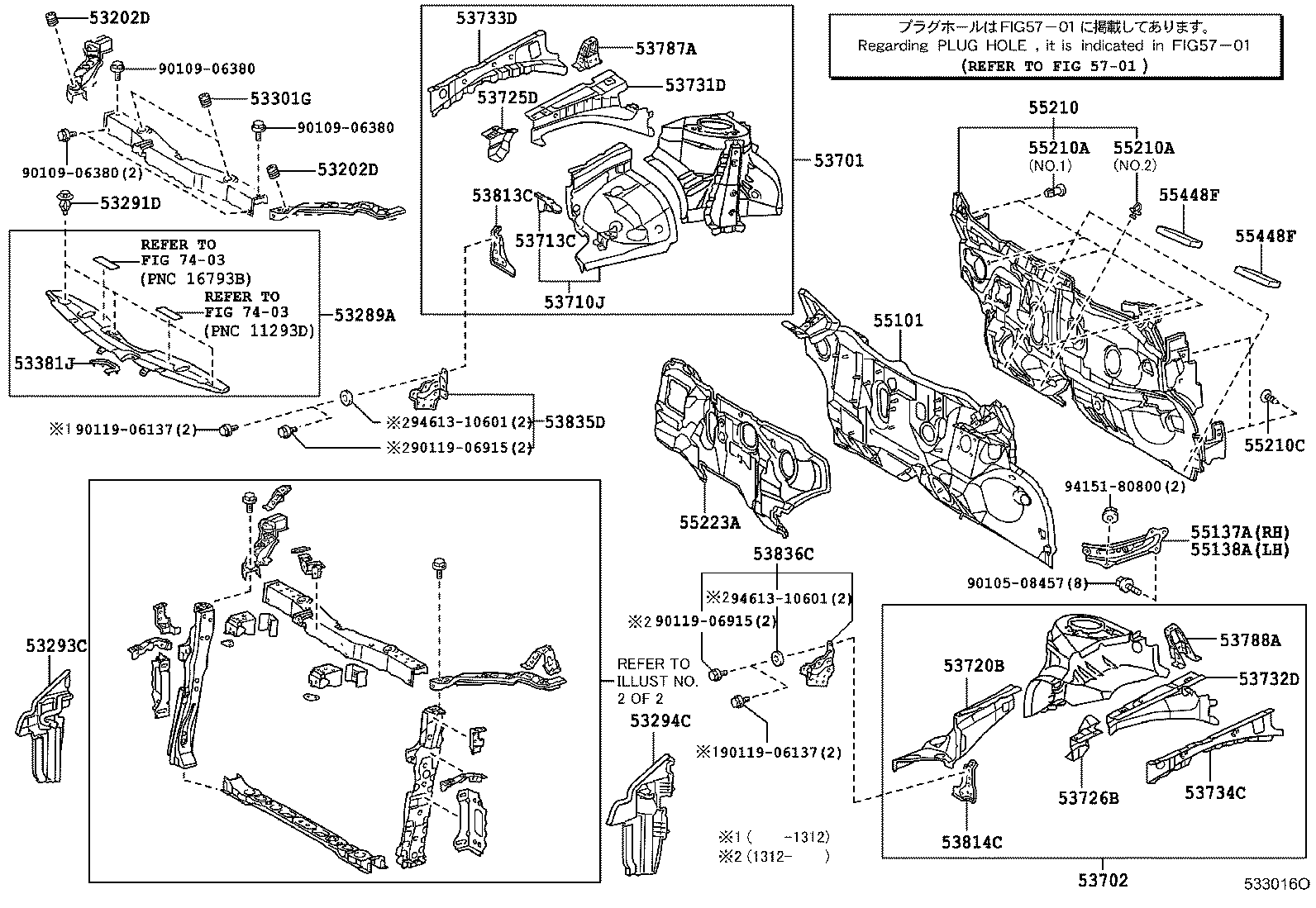

ILLUST NO. 1 OF 2(0904- )

PRIUS | FRONT FENDER APRON DASH PANEL 53202D - CUSHION, RADIATOR SUPPORT 53202D - CUSHION, RADIATOR SUPPORT 53289A - COVER, RADIATOR SUPPORT OPENING 53291D - CLIP, RADIATOR SUPPORT TO FRAME 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53301G - CUSHION, HOOD BUMPER 53381J - SEAL, HOOD TO RADIATOR SUPPORT 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53710J - APRON ASSY, FRONT FENDER, RH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53720B - APRON ASSY, FRONT FENDER, LH 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53787A - GUSSET, FRONT FENDER APRON, LOWER RH 53788A - GUSSET, FRONT FENDER APRON, LOWER LH 53813C - EXTENSION, FRONT FENDER, RH 53814C - EXTENSION, FRONT FENDER, LH 53835D - BRACKET, FRONT SIDE PANEL, RH 53836C - BRACKET, FRONT SIDE PANEL, LH 55101 - PANEL SUB-ASSY, DASH 55137A - BRACE, DASH TO FRAME, RH 55138A - BRACE, DASH TO FRAME, LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210A - CLIP 55210C - CLIP 55223A - INSULATOR, DASH PANEL, OUTER 55448F - CUSHION, INSTRUMENT PANEL FINISH, NO.1 55448F - CUSHION, INSTRUMENT PANEL FINISH, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
