TOYOTA PRIUS ZVW30-AHXEB / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

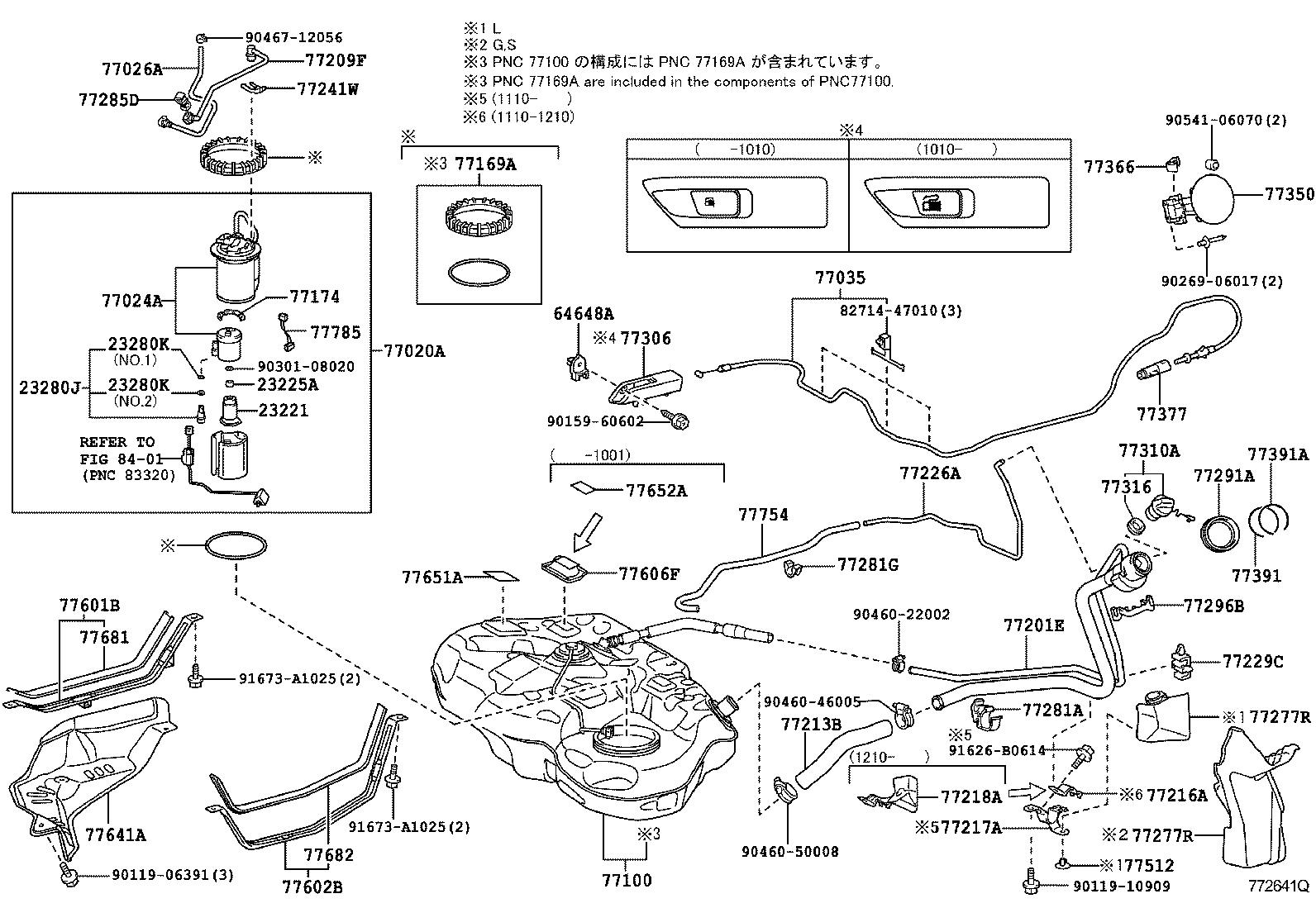

ILLUST NO. 1 OF 2(0904- )

PRIUS | FUEL TANK TUBE 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77281G - CLAMP, FUEL HOSE 77285D - CLAMP, FUEL TUBE, NO.1 77291A - SHIELD, FUEL TANK FILLER PIPE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77512 - BRACKET, FUEL TANK, REAR 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77785 - HARNESS, FUEL PUMP ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
