TOYOTA RAV4 VANGUARD GSA33W-BPAGK / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

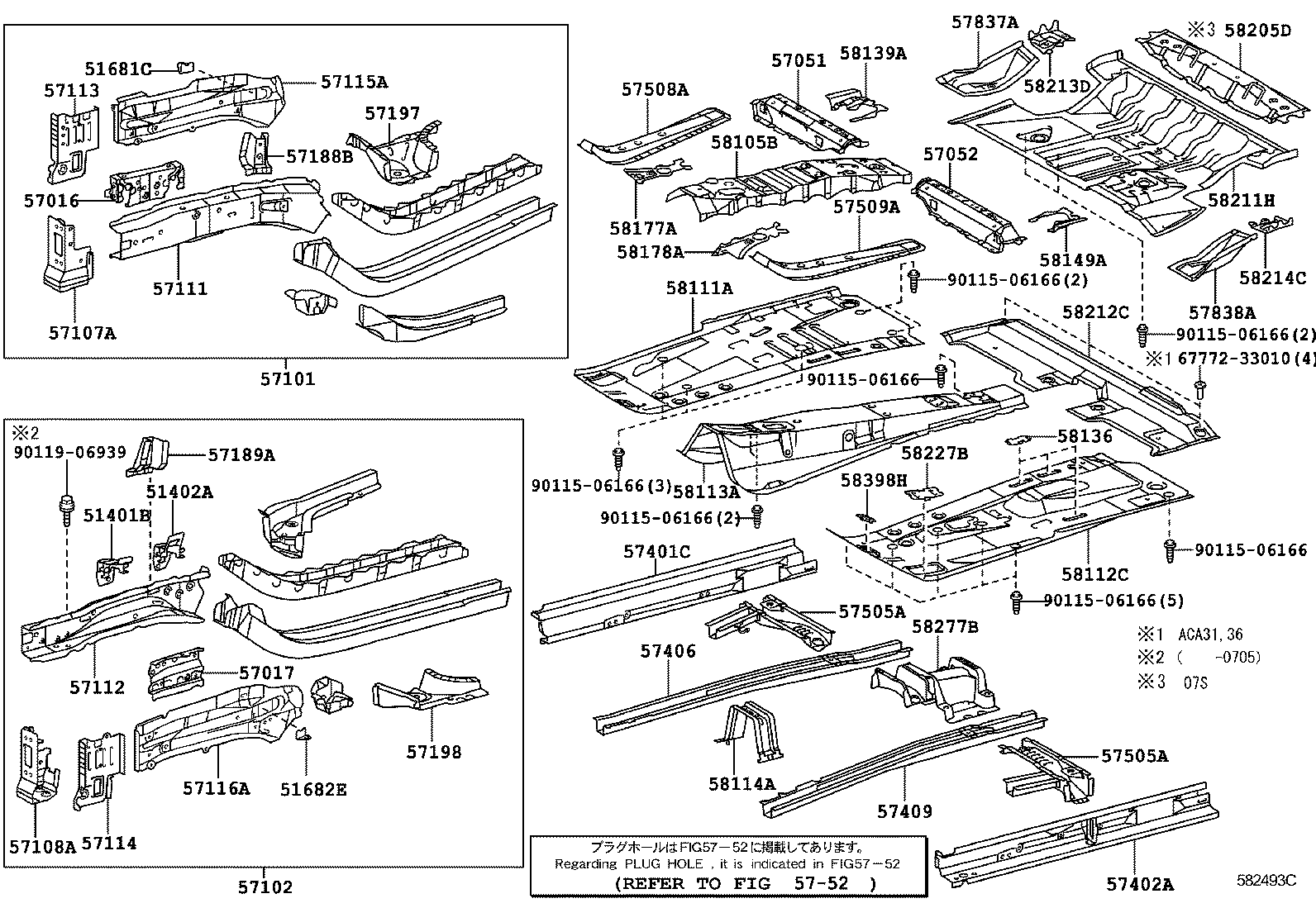

FRONT FLOOR PANEL FRONT FLOOR MEMBER

(0511-0808)ACA31,36 ; (0511-1002)ACA33,38,GSA33

RAV4 VANGUARD | FRONT FLOOR PANEL FRONT FLOOR MEMBER 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING 51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH 51682E - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH ** Refer Fig 57837A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 57838A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58114A - REINFORCEMENT, FRONT FLOOR PANEL 58136 - COVER, FRONT FLOOR HOLE 58139A - PLATE, FRONT FLOOR SIDE, REAR RH 58149A - PLATE, FRONT FLOOR SIDE, REAR LH 58177A - EXTENSION, FRONT FLOOR PANEL, RH 58178A - EXTENTION, FRONT FLOOR PANEL, LH 58205D - REINFORCE SUB-ASSY, REAR SEAT HINGE 58211H - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58213D - REINFORCEMENT, CENTER FLOOR PANEL 58214C - REINFORCEMENT, CENTER FLOOR PANEL, LH 58227B - PLATE, FRONT FLOOR PANEL SIDE, RH 58277B - REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT 58398H - COVER, FLOOR UNDER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
